S-107 Mark 1

S-107; Hallicrafters, The; (ID = 1725401) Amateur-R S-107; Hallicrafters, The; (ID = 910622) Amateur-R
S-107; Hallicrafters, The; (ID = 910623) Amateur-R S-107; Hallicrafters, The; (ID = 953154) Amateur-R
S-107; Hallicrafters, The; (ID = 1555658) Amateur-R
Use red slider bar for more.
S-107; Hallicrafters, The; (ID = 1725401) Amateur-R

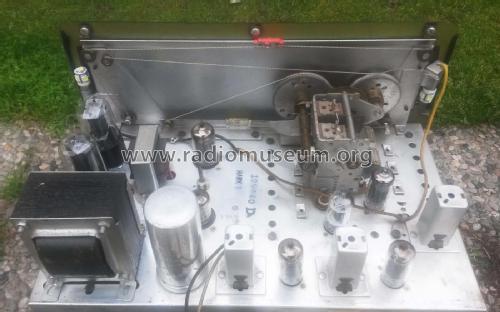

Hallicrafters, The;: S-107 [Amateur-R] ID = 1725401 933x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model S-107 Mark 1, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1958–1962 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 8: 6BA6 6C4 6BA6 6BA6 6AL5 12AX7 6K6GT 5Y3GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 1 W (unknown quality)
from Radiomuseum.org Model: S-107 [Mark 1] - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 340 x 225 x 178 mm / 13.4 x 8.9 x 7 inch
Notes Coverage: 0.54-1.63, 2.5-6.3, 6.3-16, 14-31, 48-54.5MHz, the S-107 Mark 1 has 4x6" speaker and a pin jack phones connector, speaker-phones switch on the rear apron of the chassis.
Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Price in first year of sale 95.00 $
Source of data Communications Receivers
Mentioned in Radios by hallicrafters
Literature/Schematics (1) Shortwave Receivers - Past & Present (3rd ed.)

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Here you find 822 models, 435 with images and 389 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Hallicrafters, The;: S-107
Threads: 1 | Posts: 2
Hits: 1436     Replies: 1
hallicraft: S-107 (S107);
Jürgen Bauch
10.Jan.11
  1

 Bitte die Bilder die beim S 107 (Mark 1) hinterlegt sind überprüfen ? Ich denke dass es sich um Bilder

 für den S-107 (Mark 2) handelt ,da an der Rückseite weder ein  Speaker Switch noch ein

 Phone Connector vorhanden ist.



  Jürgen Bauch



Martin Bösch
13.Jan.11
  2

Hallo Herr Bauch, aus meiner Sicht sieht es schon richtig aus,
auf den uns vorliegenden Bildern ist der Umschalter "Speaker - Phones" (der rote Schiebeschalter) und die "Phones"-Buchse (die braune mit den eigenartig schmalkalibrigen zwei Buchsen) doch zu erkennen, leider verfüge ich nicht über das Gerät oder gar beide, um einen Variantenvergleich anhand der Typenschhilder durchführen zu können. Die Bildzuordnung erscheint mir aber durchaus plausibel.

Lieber Gruss Martin Bösch
