• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1962–1965

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 79407

• Number of Tubes
• 5

• Valves / Tubes
• 6BL8 12BA6 12BA6 12AV6 6AQ5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Metal case

• from Radiomuseum.org

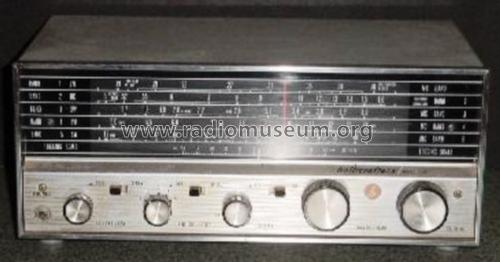

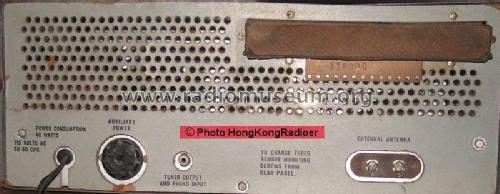

• Model: S-118 [Mark 2] - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 368 x 162 x 251 mm / 14.5 x 6.4 x 9.9 inch

• Notes
• Coverage: 0.185-0.420, 0.495-1.62, 1.6-4.95, 4.85-15, 14.8-31MHz, 2 SI-rectifiers, reception gap from 420-495KHz.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Price in first year of sale
• 100.00 $

• Source of data
• Shortwave Receivers - Past & Present (3rd ed.)

• Mentioned in
• Radios by hallicrafters

• Literature/Schematics (1)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1963, page 1276. (Order=57A 7453C))

• Author
• Model page created by a member from D. See "Data change" for further contributors.
