S-38C Run 2

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1953–1955 ?

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
43891

Schematics

S-38C; Hallicrafters, The; (ID = 3129703) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 3129704) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 3129705) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 3129706) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211494) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211495) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211496) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211497) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211498) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 211499) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 2678612) Amateur-R — Hallicrafters, The; S-38C (3)

S-38C; Hallicrafters, The; (ID = 2512033) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2558104) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2558101) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2558102) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2784204) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2784211) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 1264034) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 174719) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 174718) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 664611) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 664612) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 664613) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 664614) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 55641) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 736628) Amateur-R — Hallicrafters, The; S-38C (1)
Rare as new condition S38C.

S-38C; Hallicrafters, The; (ID = 736629) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 736630) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 736631) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 736657) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 815263) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 1264035) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 1309059) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 1326288) Amateur-R — Hallicrafters, The; S-38C (2)

S-38C; Hallicrafters, The; (ID = 1326289) Amateur-R — Hallicrafters, The; S-38C (2)

S-38C; Hallicrafters, The; (ID = 1340946) Amateur-R — Hallicrafters, The; S-38C (2)

S-38C; Hallicrafters, The; (ID = 1345086) Amateur-R — Hallicrafters, The; S-38C (2)

S-38C; Hallicrafters, The; (ID = 1992194) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 1992195) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2063391) Amateur-R — Hallicrafters, The; S-38C (1)

S-38C; Hallicrafters, The; (ID = 2063392) Amateur-R — Hallicrafters, The; S-38C (1)

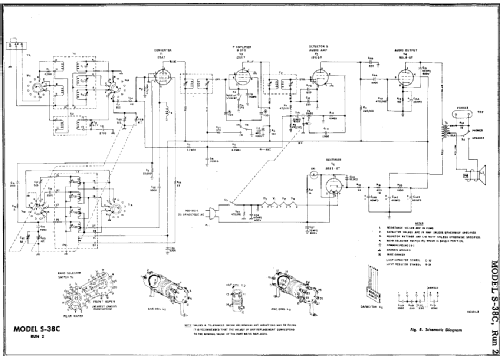

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
5

Valves / Tubes
12SA7 12SG7 12SQ7 50L6GT 35Z5GT

Main principle
Superheterodyne (common); ZF/IF 455 kHz

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast plus more than 2 Short Wave bands.

Power type and voltage
AC/DC-set / AC/DC 117V =110-120 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

Power out
1.6 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: S-38C [Run 2] - Hallicrafters, The; Chicago,

Shape
Tablemodel without push buttons, Mantel/Midget/Compact up to 14

Dimensions (WHD)
330 x 180 x 200 mm / 13 x 7.1 x 7.9 inch

Notes
Hallicrafters model S-38C (Run 2) is an AC-DC operated multi-band AM communications superheterodyne receiver.
Coverage 540 - 32000 kHz, AM/CW with BFO.
Power consumption : 30W
Personal design by Raymond Loewy.
Sears order number : 57G 07480.

Net weight (2.2 lb = 1 kg)
5.2 kg / 11 lb 7.3 oz (11.454 lb)

Price in first year of sale
50.00 $

External source of data
Ernst Erb

Source of data
Communications Receivers

Circuit diagram reference
Rider's Perpetual, Volume 23 (last), covering up to 1954

Mentioned in
Shortwave Receivers - Past & Present (3rd ed.)

Literature/Schematics (1)
Montgomery Ward Catalogs (Wards, Airline) (Fall/Winter 1954/55, page 664.)

Literature/Schematics (3)
Sears, Roebuck Catalogs (Silvertone) (Fall & Winter 1952/53 page 857. Fall & Winter 1953/54 page 890. Fall & Winter 1954/55 page 920.)

Literature/Schematics (4)
Photofact Folder, Howard W. SAMS (Set 190, folder 4, dated 1-53)

Other Models
Here you find 935 models, 478 with images and 535 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
