SR-160

SR-160; Hallicrafters, The; (ID = 142276) Amat TRX

SR-160; Hallicrafters, The; (ID = 142277) Amat TRX

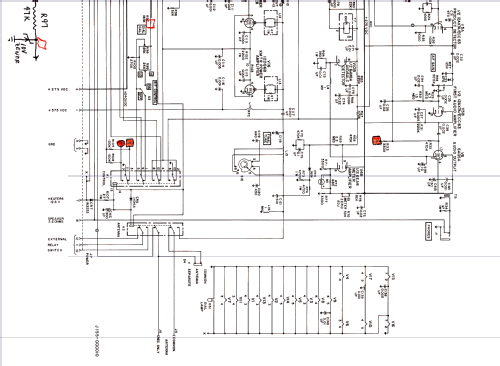

SR-160; Hallicrafters, The; (ID = 142278) Amat TRX
SR-160; Hallicrafters, The; (ID = 140762) Amat TRX SR-160; Hallicrafters, The; (ID = 140765) Amat TRX
SR-160; Hallicrafters, The; (ID = 140763) Amat TRX SR-160; Hallicrafters, The; (ID = 140764) Amat TRX
Use red slider bar for more.
SR-160; Hallicrafters, The; (ID = 140762) Amat TRX
Hallicrafters, The;: SR-160 [Amat TRX] ID = 140762 933x571
Select picture or schematic to display from thumbnails on the right and click for download.
For model SR-160, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1961–1963 Category: Amateur TRX: Transmitter/Receiver (and Transceiver)
Valves / Tubes 16: 12AW6 12BE6 12BZ6 6EA8 12AX7A 6AQ5A 12AU6 12AT7 12AT7 6AM8A 12BE6 6EA8 12BE6 12BY7A 12DQ6B 12DQ6B 0A2
Main principle Superhet with RF-stage; ZF/IF 5200 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 117/12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: SR-160 - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13 x 6.4 x 11 inch / 330 x 163 x 279 mm
Notes

6 diodes, 1 variocap. Covers 80, 40 and 20 meters HAM bands, mode SSB/CW, power input 150 watts P.E.P. SSB, 125 watts CW. Features RIT, AALC, VFO, VOX (optional with HA-16), crystal lattice filter, S- and RF-meter. Provision for 100 kHz crystal calibrator. Needs power supply: the PS-150-120 (price 100 USD) is a 115 volt AC power supply available for fixed station use and the PS-150-12 (price 110 USD) is a 12 volt DC power supply for use with the mobile mounting rack MR-160 (price 40 USD) for mobile operation.

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 395.00 $
Source of data Radios by hallicrafters
Mentioned in The Hallicrafters Story 1933-1975, de Henseler

Model page created by a member from D. See "Data change" for further contributors.



All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Here you find 823 models, 449 with images and 398 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
