SX-100 Mark 1A

SX-100; Hallicrafters, The; (ID = 390210) Amateur-R

SX-100; Hallicrafters, The; (ID = 390212) Amateur-R
SX-100; Hallicrafters, The; (ID = 390954) Amateur-R SX-100; Hallicrafters, The; (ID = 1636704) Amateur-R
SX-100; Hallicrafters, The; (ID = 1636705) Amateur-R SX-100; Hallicrafters, The; (ID = 1908632) Amateur-R
SX-100; Hallicrafters, The; (ID = 1908635) Amateur-R SX-100; Hallicrafters, The; (ID = 1908723) Amateur-R
Use red slider bar for more.
SX-100; Hallicrafters, The; (ID = 390954) Amateur-R
Hallicrafters, The;: SX-100 [Amateur-R] ID = 390954 933x457

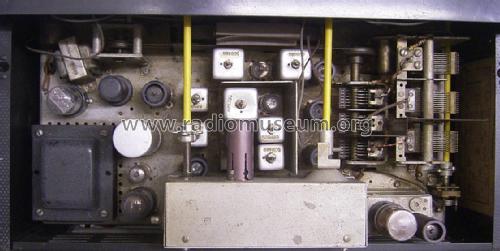

Select picture or schematic to display from thumbnails on the right and click for download.
For model SX-100 Mark 1A, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1956–1961 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 13: 6CB6 6AU6 6C4 6BA6 6BA6 12AT7 6C4 6BA6 6BJ7 6SC7 6K6 6AU6 5Y3 0A2
Main principle Superhet, double/triple conversion; ZF/IF 1650 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage 105-125 / 6 Volt
Loudspeaker - This model requires external speaker(s).
Power out 1 W (unknown quality)
from Radiomuseum.org Model: SX-100 [Mark 1A] - Hallicrafters, The; Chicago,
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Dimensions (WHD) 467 x 216 x 269 mm / 18.4 x 8.5 x 10.6 inch
Notes Coverage: 0.538-1.58, 1.72-4.9, 4.6-13, 12-34MHz, 2nd IF=50.5KHz, 50KHz L/C-Filter, Reception Gap from 1.58-1.72MHz, DC Operation also by a 6 Volt Storage Battery and "B" Batteries or Vibrapack, there were some minor electrical and cosmetic differences between the Mark 1, 1A and Mark 2 such as slightly different Style of Knobs.
Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Price in first year of sale 295.00 $
Source of data Communications Receivers
Mentioned in Radios by hallicrafters (Shortwave Receivers Past & pres.)
Literature/Schematics (1) Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1006; order=57D 7497LF)

Model page created by a member from D. See "Data change" for further contributors.
