• Country
• United States of America (USA)

• Manufacturer / Brand
• Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

• Year
• 1961–1964

• Category
• Amateur-Receiver (amateur bands, may include broadcast bands)

• Radiomuseum.org ID
• 79404

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6DC6 6BA7 12AT7 6DC6 6BA7 6CB6 6DC6 6BA6 6DC6 12AX7 6BJ7 6AQ5 6AU6 6AU6 6AU6 12AT7 6BY6 0A2

• Main principle
• Superhet, double/triple conversion; ZF/IF 6005 kHz

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: SX-115 - Hallicrafters, The; Chicago,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 406 x 267 x 406 mm / 16 x 10.5 x 16 inch

• Notes

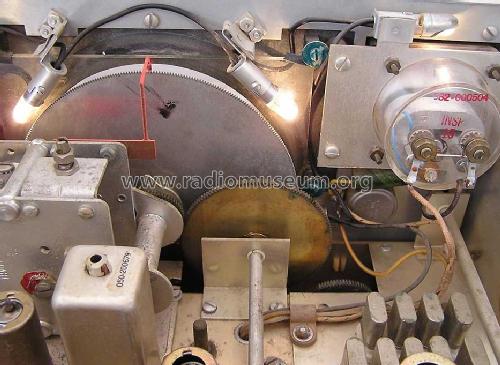

• Coverage: 3.5-4, 7-7.5, 14-14.5, 21-21.5, 28-28.5, 28.5-29, 29-29.5, 29.5-30, 9.6-10MHz, 1st IF 6005-6505KHz, 2nd IF 1005KHz, 3rd IF 50.75KHz, 50.75KHz L/C-Filter, 5 silicon diodes, 1KHz dial accuracy between calibration points, gear-driven tuning with virtually no backlash, matches the HT-33 and HT-32 transmitters, designed to compete with the Collins 75A/S series.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 600.00 $

• Source of data
• Communications Receivers

• Mentioned in
• Radios by hallicrafters

• Literature/Schematics (1)
• Shortwave Receivers - Past & Present (3rd ed.)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
