SX-42U

SX-42U; Hallicrafters, The; (ID = 268461) Amateur-R SX-42U; Hallicrafters, The; (ID = 268462) Amateur-R
SX-42U; Hallicrafters, The; (ID = 268463) Amateur-R SX-42U; Hallicrafters, The; (ID = 268464) Amateur-R
Use red slider bar for more.
SX-42U; Hallicrafters, The; (ID = 268461) Amateur-R

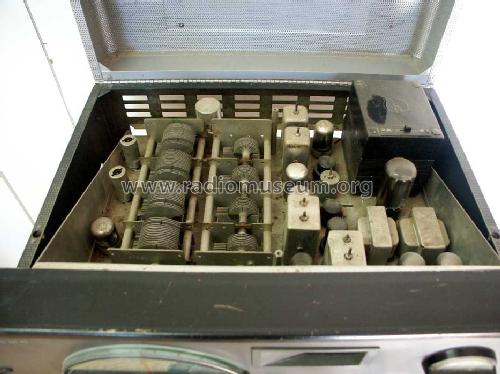

Hallicrafters, The;: SX-42U [Amateur-R] ID = 268461 933x581
Select picture or schematic to display from thumbnails on the right and click for download.
For model SX-42U, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1946–1948 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 15: 6AG5 6AG5 7F8 6SK7 6SG7 6H6 7H7 7H7 6H6 6SL7 7A4 6V6 6V6 VR150 5U4
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 110-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 8 W (unknown quality)
from Radiomuseum.org Model: SX-42U - Hallicrafters, The; Chicago,
Material Metal case
Shape Boatanchor (heavy military or commercial set).
Dimensions (WHD) 508 x 260 x 203 mm / 20 x 10.2 x 8 inch
Notes Coverage: 0.540-1.62, 1.62-5, 5-15, 15-30, 27-55, 55-110MHz,Xtal-IF-Filter, DC Operation also by a 6Volt Storage Battery and "B" Batteries or Vibrapack, ZF 455 u.10.7 für FM, 27-110MHz FM
Net weight (2.2 lb = 1 kg) 23.6 kg / 51 lb 15.7 oz (51.982 lb)
Price in first year of sale 288.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Communications Receivers
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)
