SX-43

SX-43; Hallicrafters, The; (ID = 18401) Amateur-R

SX-43; Hallicrafters, The; (ID = 338100) Amateur-R

SX-43; Hallicrafters, The; (ID = 338101) Amateur-R

SX-43; Hallicrafters, The; (ID = 338102) Amateur-R

SX-43; Hallicrafters, The; (ID = 338103) Amateur-R

SX-43; Hallicrafters, The; (ID = 338104) Amateur-R

SX-43; Hallicrafters, The; (ID = 338105) Amateur-R

SX-43; Hallicrafters, The; (ID = 338106) Amateur-R

SX-43; Hallicrafters, The; (ID = 338107) Amateur-R

SX-43; Hallicrafters, The; (ID = 338108) Amateur-R
SX-43; Hallicrafters, The; (ID = 2053108) Amateur-R SX-43; Hallicrafters, The; (ID = 2053110) Amateur-R
SX-43; Hallicrafters, The; (ID = 2053109) Amateur-R SX-43; Hallicrafters, The; (ID = 57407) Amateur-R
SX-43; Hallicrafters, The; (ID = 1085663) Amateur-R SX-43; Hallicrafters, The; (ID = 1085664) Amateur-R
SX-43; Hallicrafters, The; (ID = 1085665) Amateur-R SX-43; Hallicrafters, The; (ID = 1314729) Amateur-R
SX-43; Hallicrafters, The; (ID = 1321045) Amateur-R SX-43; Hallicrafters, The; (ID = 1321046) Amateur-R
Use red slider bar for more.
SX-43; Hallicrafters, The; (ID = 2053108) Amateur-R
Hallicrafters, The;: SX-43 [Amateur-R] ID = 2053108 1400x846
Select picture or schematic to display from thumbnails on the right and click for download.
For model SX-43, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1947–1949 perfect model Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Valves / Tubes 11: 6BA6 7F8 6SG7 6SH7 6SH7 6H6 6AL5 6SQ7 6J5 6V6 5Y3
Main principle Superhet, double/triple conversion; ZF/IF 455 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 105-125 / 6 Volt
Loudspeaker - For headphones or amp.
Power out 3 W (unknown quality)
from Radiomuseum.org Model: SX-43 - Hallicrafters, The; Chicago,
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 470 x 225 x 305 mm / 18.5 x 8.9 x 12 inch
Notes

Vorstufen-Doppelsuper; 6 AM-Bänder; 0.54-55MHz; 2 FM Bänder: 44-55 und 88-108MHz; ZF 455 kHz und 10.7 MHz; Quarzfilter. Daten Konrad Birkner. DC Operation also by a 6Volt Storage Battery and "B" Batteries or Vibrapack. In the Sears Catalog #198, 1949 is the price $ 189.50.

Net weight (2.2 lb = 1 kg) 18.6 kg / 40 lb 15.5 oz (40.969 lb)
Price in first year of sale 169.00 $
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Communications Receivers

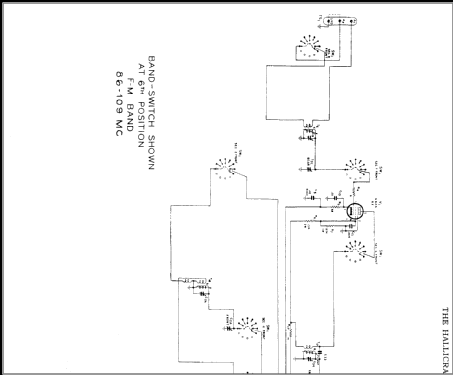

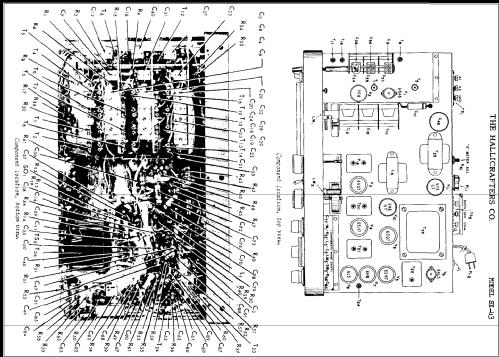

Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Mentioned in Shortwave Receivers - Past & Present (3rd ed.)
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (#198, Spring & Summer 1949, page 628.)
