SX-99 Ch= Mark 1

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1954–1959

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
43855

Schematics

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763978) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763979) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763980) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763981) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763982) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763983) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2763984) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566106) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566110) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566572) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566574) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566576) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566577) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566578) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566579) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566580) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566581) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566582) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566583) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 566584) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (3)

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2563903) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (1)
Hallicrafters SX-99 front

SX-99 Ch= Mark 1; Hallicrafters, The; (ID = 2563905) Amateur-R — Hallicrafters, The; SX-99 Ch= Mark 1 (1)

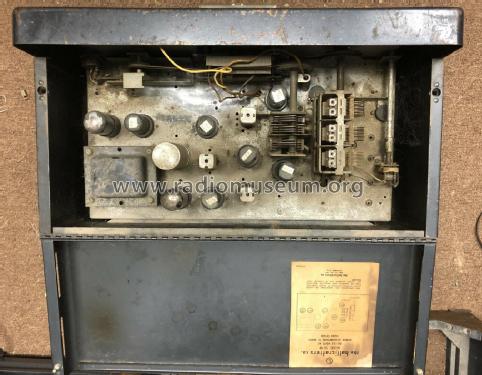

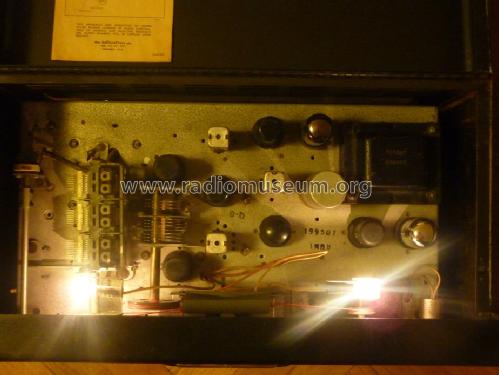

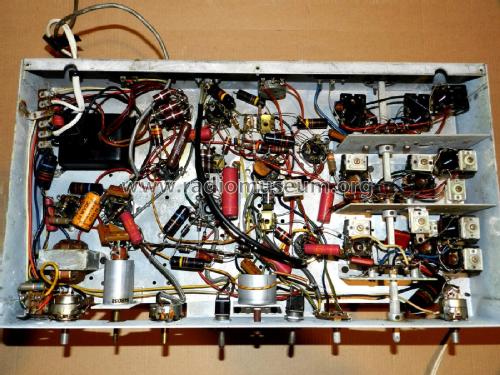

Hallicrafters SX-99 chassis
