World-Wide TW-1000A

World-Wide TW-1000A; Hallicrafters, The; (ID = 532882) Receiver-C World-Wide TW-1000A; Hallicrafters, The; (ID = 532883) Receiver-C
World-Wide TW-1000A; Hallicrafters, The; (ID = 1610812) Receiver-C World-Wide TW-1000A; Hallicrafters, The; (ID = 532889) Receiver-C
World-Wide TW-1000A; Hallicrafters, The; (ID = 532886) Receiver-C World-Wide TW-1000A; Hallicrafters, The; (ID = 420674) Receiver-C
World-Wide TW-1000A; Hallicrafters, The; (ID = 420669) Receiver-C World-Wide TW-1000A; Hallicrafters, The; (ID = 420673) Receiver-C
World-Wide TW-1000A; Hallicrafters, The; (ID = 532891) Receiver-C World-Wide TW-1000A; Hallicrafters, The; (ID = 1606848) Receiver-C
Use red slider bar for more.
World-Wide TW-1000A; Hallicrafters, The; (ID = 532882) Receiver-C
Hallicrafters, The;: World-Wide TW-1000A [Receiver-C] ID = 532882 611x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model World-Wide TW-1000A, Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Country:  United States of America (USA)
Manufacturer / Brand:  Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
Year: 1952–1956 Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 5: 1U4 1L6 1U4 1U5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Line / Batteries (any type) / 105-120 / 90 & 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: World-Wide TW-1000A - Hallicrafters, The; Chicago,
Material Leather / canvas / plastic - over other material

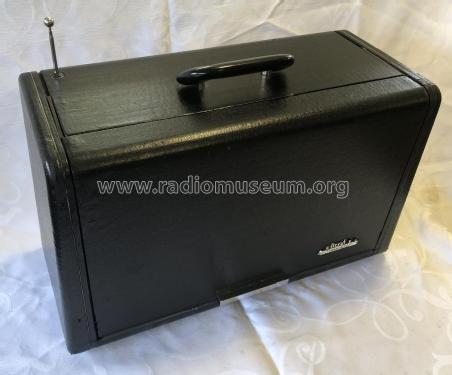

Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 430 x 300 x 200 mm / 16.9 x 11.8 x 7.9 inch

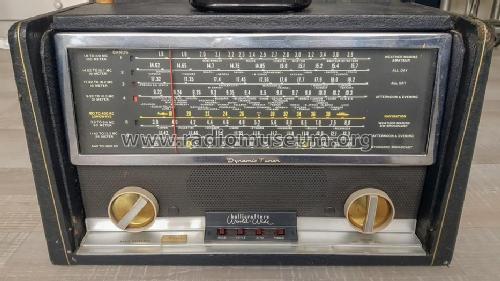

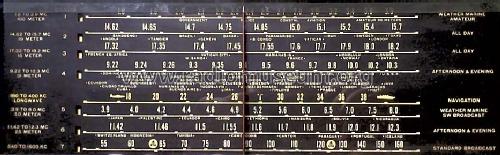

Notes Coverage: 0.18-0.40, 0.54-1.6, 1.8-3.9, 3.9-8MHz and 4 spread bands covering the 31,25,19 and 16 meter international short wave bands.
220 volt AC/DC operation with ballast adapter 1X1438.

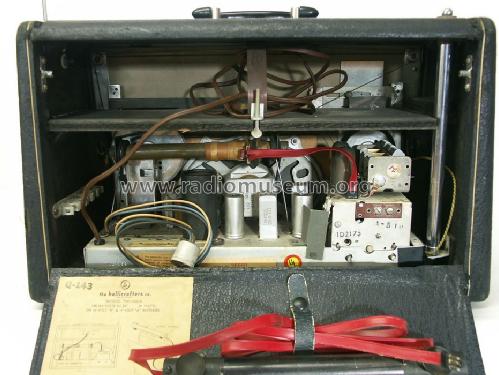

The TW-1000, TW-1000A and TW-2000 are electrically identical, except for where the loop antenna is mounted, this model use a ferrite rod loop antenna mounted on the chassis, color of the models are black, brown or blue.
Net weight (2.2 lb = 1 kg) 7.8 kg / 17 lb 2.9 oz (17.181 lb)
Price in first year of sale 150.00 $
Collectors' prices
Source of data Radios by hallicrafters

Model page created by a member from D. See "Data change" for further contributors.
