For model 1,6GHz Counter HM-8021-3 LED-Anzeige grün, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1996 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: 1,6GHz Counter HM-8021-3 [LED-Anzeige grün] - HAMEG GmbH, Frankfurt
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch
Notes

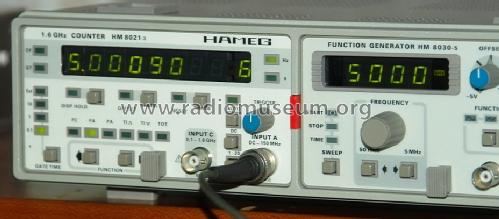

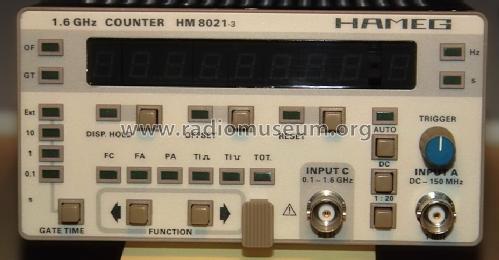

Frequenzzähler  1,6 GHz  HM8021-3( neu ) ,

Besonderheiten: ,

Grüne LED-Anzeige ,8+1 stellig mit 8mm Ziffernhöhe ,

Frequenzbereich  DC bis 1,6GHz ,

Empfindlichkeit  20mV ,

7 Meßfunktionen ,

Externes Gate ,3 wählbare Torzeiten ,

Quarzzeitbasis  10MHz ( TCXO ) mit 0,5 ppm Stabilität ,

Zuschaltbare Autotriggerfunktion ,

Eingang A , DC bis 150MHz bei 1MΩ Eingangsimpedanz ,

Eingang C , 100MHz bis 1,6GHz bei 50Ω Eingangsimpedanz ,

Nur funktionsfähig mit dem Grundgerät HM-8001 oder HM-8001-2 ,

Hergestellt bei Hameg Frankreich .









Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 598.00 DM
Mentioned in - - Manufacturers Literature (Hameg Katalog/Datenblatt)
