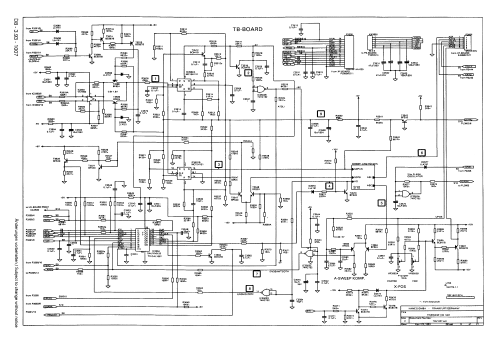

Analog- / Digital-Oscilloscope HM1007; HAMEG GmbH, (ID = 1831198) Equipment

Analog- / Digital-Oscilloscope HM1007; HAMEG GmbH, (ID = 1831199) Equipment
Analog- / Digital-Oscilloscope HM1007; HAMEG GmbH, (ID = 459495) Equipment Analog- / Digital-Oscilloscope HM1007; HAMEG GmbH, (ID = 1702102) Equipment
Use red slider bar for more.
Analog- / Digital-Oscilloscope HM1007; HAMEG GmbH, (ID = 459495) Equipment
HAMEG GmbH,: Analog- / Digital-Oscilloscope HM1007 [Equipment] ID = 459495 900x675
Select picture or schematic to display from thumbnails on the right and click for download.
For model Analog- / Digital-Oscilloscope HM1007, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1995 ? Category: Service- or Lab Equipment
Valves / Tubes 1: D14-372GH
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 90-260 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analog- / Digital-Oscilloscope HM1007 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 145 x 380 mm / 11.2 x 5.7 x 15 inch
Notes Hameg Analog-/Digital-Oszilloskop HM1007.
2 Kanäle 0-100 MHz, Zeitbasis max. 5 ns/cm.
Digital: Max. 2×40 MS/s, Speicher 4×2048×8 Bit.
Verzögerungsleitung, Triggerung bis 130 MHz.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Collectors' prices
Source of data -- Original-techn. papers.
