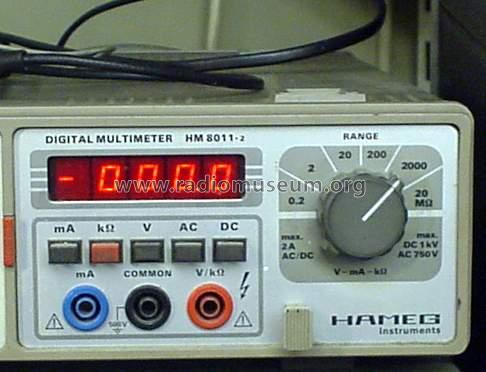

HAMEG GmbH,: Digital-Multimeter HM8011-2 [Equipment] ID = 179714 486x372
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital-Multimeter HM8011-2, HAMEG GmbH, Frankfurt:
Digitalmultimeter

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1985 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital-Multimeter HM8011-2 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch
Notes Messbereiche: Gleichspannung von 200 mV bis 2000 V; Gleichstrom: 200 µA bis 2 A; Wechselspannung: 200 mV bis 2000 V; Wechselstrom: 200 µA bis 2 A; Widerstand: 0 bis 20 MOhm. Genauigkeit 0,05 %.
Nur im Grundmodul HM8001 zu benutzen, da von dort die Stromversorgung erfolgt.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by Hartmut Daniels † 22.11.16. See "Data change" for further contributors.
