• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1987 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 131034

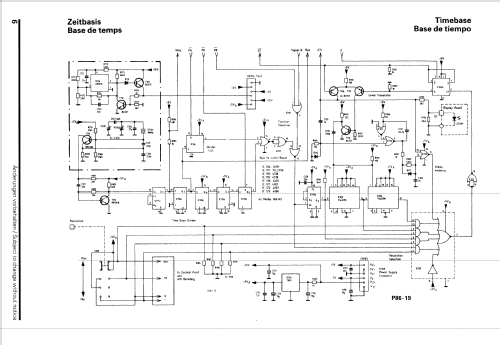

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

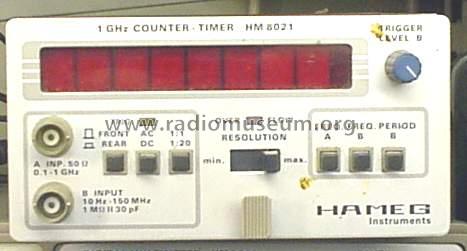

• Model: 1GHz Counter HM8021-2 - HAMEG GmbH, Frankfurt

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch

• Notes
• Hameg Frequenzzähler HM8021-2.
  Frequenzmessung 0,1 Hz bis 1 GHz, Periodendauermessung 1 µs bis 99,9 s, Empfindlichkeit 20 mV_eff, achtstellige 8 mm hohe LED-Anzeige, Ereigniszählung.
  Passend zum Grundgerät HM8001.

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
