Funktionsgenerator HM8130

Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1905881) Equipment

Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1905882) Equipment

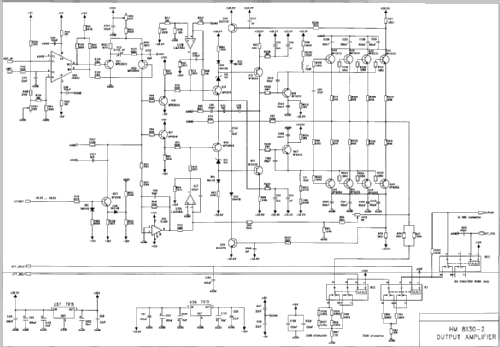

Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1905883) Equipment
Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1180224) Equipment Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1180226) Equipment
Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1702101) Equipment
Use red slider bar for more.

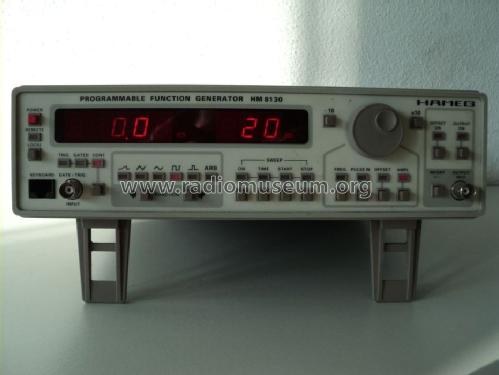

Funktionsgenerator HM8130; HAMEG GmbH, (ID = 1180224) Equipment
HAMEG GmbH,: Funktionsgenerator HM8130 [Equipment] ID = 1180224 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funktionsgenerator HM8130, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1995 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Funktionsgenerator HM8130 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 285 x 85 x 365 mm / 11.2 x 3.3 x 14.4 inch
Notes Fernsteuerbarer Synthesizer-Funktionsgenerator.
Frequenzbereich 10mHz bis 10MHz.
5 Signalarten; eingebauter Wobbler.
Arbiträrsignalgenerator für frei definierbare Signalformen.
Externe Torsteuerung (Gate) und externe Triggerung.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

Model page created by Dieter ADAM. See "Data change" for further contributors.
