HF-Synthesizer HM8133

HF-Synthesizer HM8133; HAMEG GmbH, (ID = 1702113) Equipment HF-Synthesizer HM8133; HAMEG GmbH, (ID = 1702116) Equipment
Use red slider bar for more.

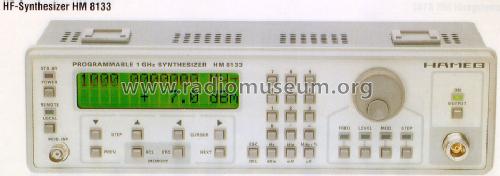

HF-Synthesizer HM8133; HAMEG GmbH, (ID = 1702113) Equipment
HAMEG GmbH,: HF-Synthesizer HM8133 [Equipment] ID = 1702113 933x329
Select picture or schematic to display from thumbnails on the right and click for download.
For model HF-Synthesizer HM8133, HAMEG GmbH, Frankfurt:

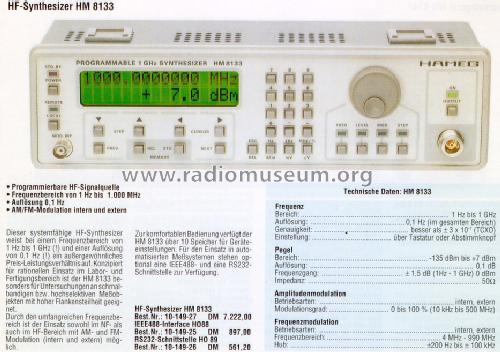

Bild aus ELV Katalog 1995

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1991 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: HF-Synthesizer HM8133 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 85 x 365 mm / 11.2 x 3.3 x 14.4 inch
Notes

HF-Synthesizer 1 Hz bis 1GHz, Auflösung 0,1 Hz ! Modulationsart AM / FM (400 und 1000 Hz).

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)

Model page created by Volker MARTIN. See "Data change" for further contributors.
