For model Basis-Modul HM8001, HAMEG GmbH, Frankfurt:
Grundmodul HM8001 Mit HM8011-2 (Digital-Multimeter) und HM8030-3 (Funktionsgenerator)

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1990 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details

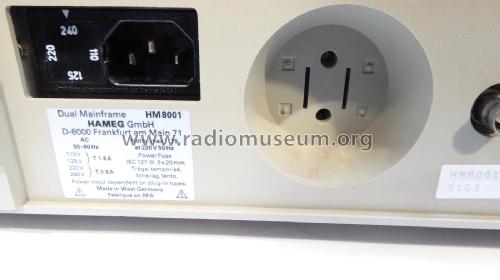

Power type and voltage Alternating Current supply (AC) / 110; 125; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Basis-Modul HM8001 - HAMEG GmbH, Frankfurt
Material Various materials
Shape Rack
Dimensions (WHD) 285 x 75 x 365 mm / 11.2 x 3 x 14.4 inch
Notes Basismodul/Netzteil für zwei HAMEG Module. Stapelbar. 2 × 8 V/0,5 A; 2 × 5 V/1A; 4 × 20 V/0,5 A; Spannungswerte 5V und 20V über Module programmierbar. 2 BNC-Buchsen.
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Mentioned in -- Original-techn. papers.

Model page created by Martin Dill. See "Data change" for further contributors.
