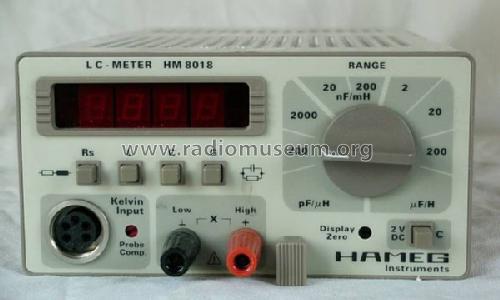

For model LC-Meter HM8018, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1987 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 5; -13; 13 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: LC-Meter HM8018 - HAMEG GmbH, Frankfurt
Material Various materials
Shape Chassis only or for «building in»
Dimensions (WHD) 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch
Notes L-C Meter, Anzeige 3½ LED, L (200 µH-200 H), Rs (20 Ohm-200 kOhm), C (200 pF-200 µF), G (20 µS-200 mS). Messfrequenzen 160 Hz, 1,6 kHz, 16 kHz, Messspannung 1 Vss, Messungen 2/s, Messart 2- oder 4-Punkt. Originalpreis gilt für 1989/90.
Net weight (2.2 lb = 1 kg) 0.7 kg / 1 lb 8.7 oz (1.542 lb)
Price in first year of sale 528.00 DM
Mentioned in -- Original-techn. papers.

Model page created by Martin Dill. See "Data change" for further contributors.
