Impulsgenerator HM8035
Use red slider bar for more.
HAMEG GmbH,: Impulsgenerator HM8035 [Equipment] ID = 679855 450x224

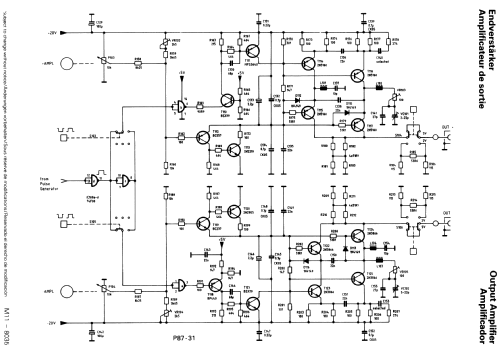

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1984 | Category: Service- or Lab Equipment | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | Wave Bands given in the notes. |
|---|---|
| Details | |
| Power type and voltage | Powered by external power supply or a main unit. |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Impulsgenerator HM8035 - HAMEG GmbH, Frankfurt |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 135 x 68 x 228 mm / 5.3 x 2.7 x 9 inch |
| Notes | Hameg Modularsystem Frequenzbereich 2 Hz - 20 MHz Impulsdauerbereich 20 ns bis 200 ms Einzelimpulsauslösung Anzeige WIDTH > PERIOD Nur im Grundgerät HM 8001 zu benutzen |
| Net weight (2.2 lb = 1 kg) | 0.8 kg / 1 lb 12.2 oz (1.762 lb) |
| Source of data | -- Original prospect or advert |
Model page created by Eduard Abfalterer. See "Data change" for further contributors.
