Oscilloscope HM 312-6

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1977 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 108884

• Picture

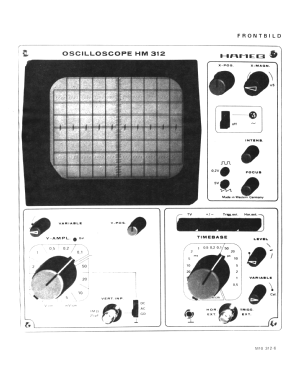

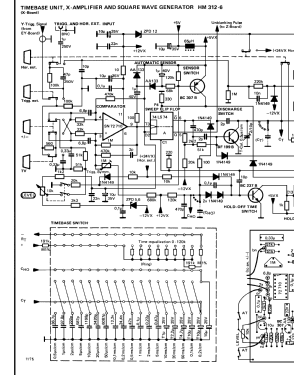

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D13-620GH

• Number of Transistors
• 30

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oscilloscope HM 312-6 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 212 x 237 x 380 mm / 8.3 x 9.3 x 15 inch

• Notes
• ICs: 7

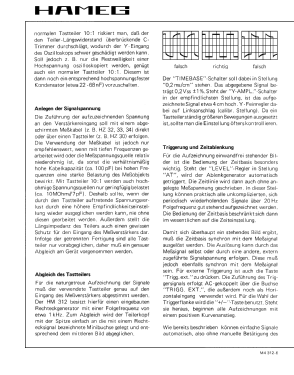

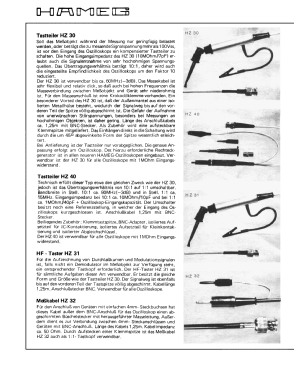

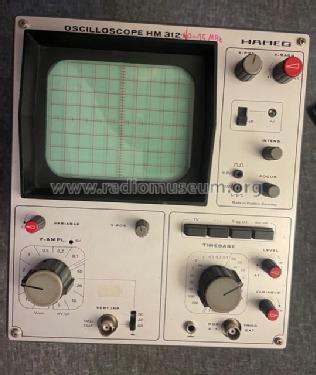

  Hameg Einkanal-Oszilloskop HM312-6.
  Frequenzbereich 0-15 MHz, eingebauter Rechteckgenerator 1 kHz.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 994.00 DM

• Author
• Model page created by Stefan Weigelt. See "Data change" for further contributors.
