Oscilloscope HM 512-2

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811510) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811511) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811512) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811513) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811514) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811515) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811516) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811517) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811518) Equipment

Oscilloscope HM 512-2; HAMEG GmbH, (ID = 811519) Equipment
Oscilloscope HM 512-2; HAMEG GmbH, (ID = 1106183) Equipment Oscilloscope HM 512-2; HAMEG GmbH, (ID = 683186) Equipment
Oscilloscope HM 512-2; HAMEG GmbH, (ID = 683187) Equipment Oscilloscope HM 512-2; HAMEG GmbH, (ID = 683188) Equipment
Oscilloscope HM 512-2; HAMEG GmbH, (ID = 683189) Equipment
Use red slider bar for more.
Oscilloscope HM 512-2; HAMEG GmbH, (ID = 1106183) Equipment

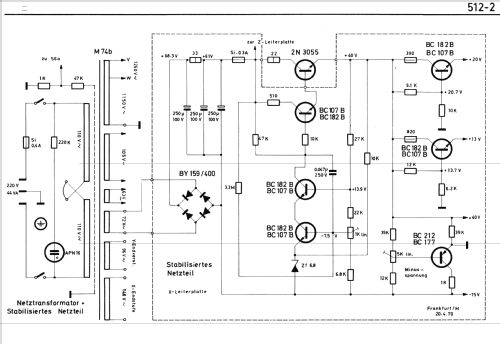

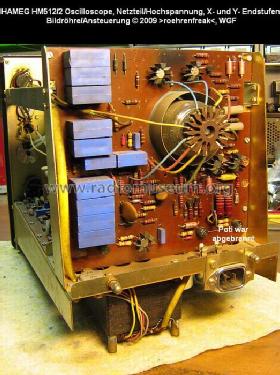

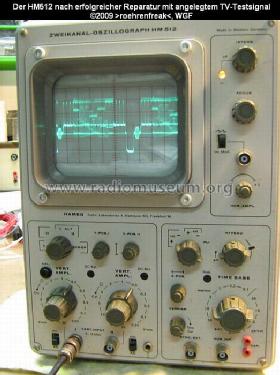

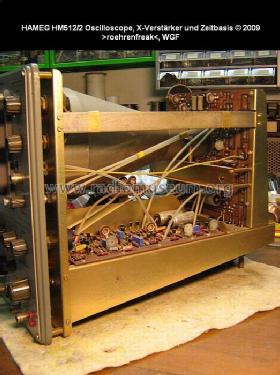

HAMEG GmbH,: Oscilloscope HM 512-2 [Equipment] ID = 1106183 758x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscilloscope HM 512-2, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1970 Category: Service- or Lab Equipment
Valves / Tubes 1: D13-41GH
Semiconductors (the count is only for transistors) 75:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscilloscope HM 512-2 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 216 x 289 x 355 mm / 8.5 x 11.4 x 14 inch
Notes Two channels, 0-15 MHz (-3 dB), input impendance 1 MOhm/30 pF, 20 mVss/cm max., max. overshoot 1%, 4.2 kV on the CRT, triggering 0.5 Hz - 20 MHz.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Source of data -- Original-techn. papers.

Model page created by Sinisa Trlin. See "Data change" for further contributors.



All listed radios etc. from HAMEG GmbH, Frankfurt
Here you find 111 models, 104 with images and 88 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
