Oszillograph HM107-5 (8 Röhren)

Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1239649) Equipment

Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1239650) Equipment

Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1239651) Equipment

Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1772964) Equipment
Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1079252) Equipment Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1390928) Equipment
Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1390936) Equipment Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1390938) Equipment
Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1390939) Equipment Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1390941) Equipment
Use red slider bar for more.
Oszillograph HM107-5 ; HAMEG GmbH, (ID = 1079252) Equipment

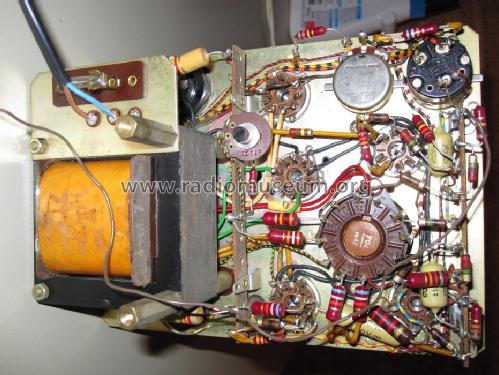

HAMEG GmbH,: Oszillograph HM107-5 [Equipment] ID = 1079252 781x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszillograph HM107-5 (8 Röhren), HAMEG GmbH, Frankfurt:
Zwischen den Typen HM107 (8 Röhren) und HM107 (9 Röhre) gibt es äußerlich keinen Unterschied!

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1963 ?? Category: Service- or Lab Equipment
Valves / Tubes 8: EC92 EF184 ECC85 ECC85 ECC85 EZ80 EZ80 DG7-32
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszillograph HM107-5 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Notes Oszillograph für Wechselspannungen. Zwei Y-Eingänge für max. 10 bzw. 100 Volt.
Source of data -- Schematic

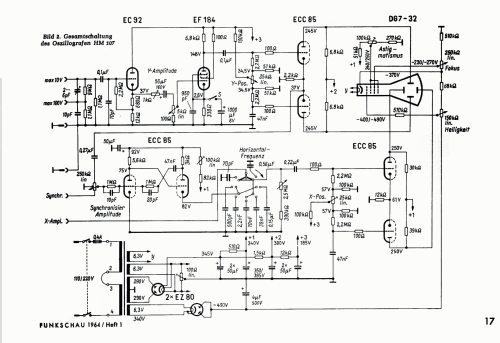

Mentioned in Funkschau (FS Heft 1/1964 S.17 Universal-Oszillograf HM107)

Model page created by Otto Frosinn. See "Data change" for further contributors.
