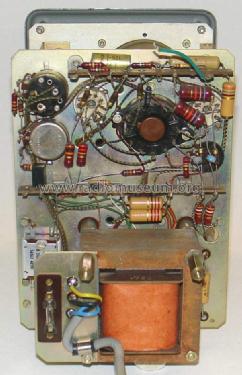

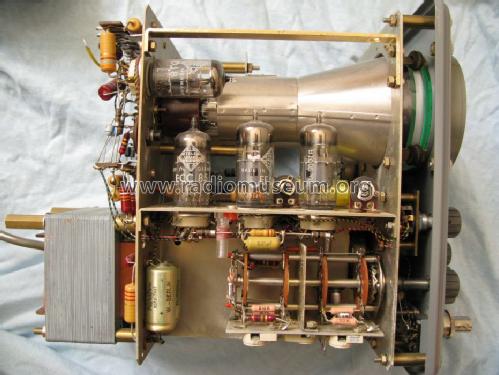

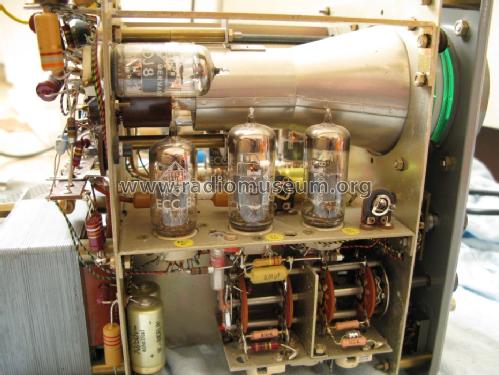

For model Oszillograph HM108 7cm Röhre, HAMEG GmbH, Frankfurt

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1964 ?? Category: Service- or Lab Equipment
Valves / Tubes 8: PCC88 EF184 EF184 ECC85 ECC85 ECC85 ECC85 DG7-32 85A2
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszillograph HM108 [7cm Röhre] - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 150 x 210 x 250 mm / 5.9 x 8.3 x 9.8 inch
Notes

Universal-Oszillograf bis 5 MHz; koaxialer Eingang Y (1 MΩ/40 pF) mit AC/DC-Umschaltung; Eingang X: 2 MΩ/28 pF; Kippteil: 8 Hz...160 kHz in 7 Stufen, Synchronisierbereich: 10 Hz...4 MHz, Synchronisation positiv, negativ oder extern.
Leistungsaufnahme: ca. 55 VA.
Zubehör:

  • Teilerkopf HZ20 (24 DM)
  • Demodulatorkopf HZ21 (24 DM)
  • Messkabel HZ23 (20 DM)
  • Messkabel HZ25 (20 DM)
  • Lichtschutztubus HZ12 (4 DM)
  • Vorverstärker HZ27 (80 DM)
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 500.00 DM
Collectors' prices
Mentioned in Katalog RADIO FERN ELEKTRONIK GmbH, Essen

Model page created by Oswald Bettendorf. See "Data change" for further contributors.
