Oszilloskop HM203-7
HAMEG GmbH, Frankfurt
- Country
- Germany
- Manufacturer / Brand
- HAMEG GmbH, Frankfurt
- Year
- 1987 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 159539
Bild aus ELV Katalog 1995
HAMEG HM203-7

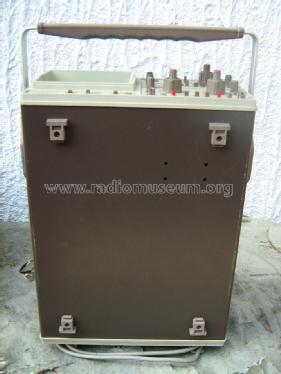

HAMEG HM203-7 Chassis
HAMEG 203-7 Oszillogramm

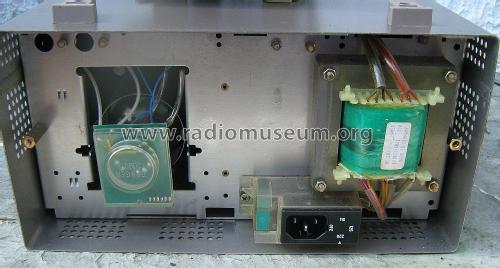

HAMEG 203-7 Chassis unten
HAMEG 203-7 Typenschild

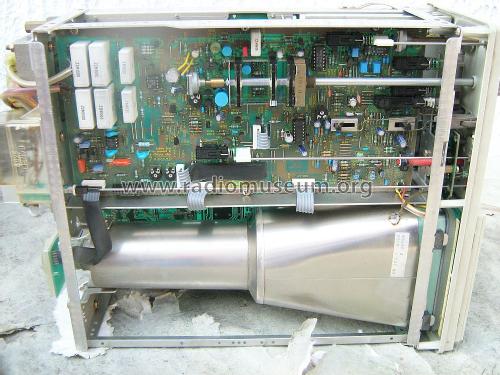

HAMEG 203-7 Chassis oben
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Aus eigenen bestand
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- ER14-11GY or ER-151GH or D14-364GY/123
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszilloskop HM203-7 - HAMEG GmbH, Frankfurt
- Shape
- Tablemodel, low profile (big size).
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
