Oszilloskop HM212

Oszilloskop HM212; HAMEG GmbH, (ID = 1246085) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402069) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402070) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402071) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402072) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402073) Equipment

Oszilloskop HM212; HAMEG GmbH, (ID = 1402074) Equipment
Oszilloskop HM212; HAMEG GmbH, (ID = 178272) Equipment Oszilloskop HM212; HAMEG GmbH, (ID = 178273) Equipment
Oszilloskop HM212; HAMEG GmbH, (ID = 178274) Equipment Oszilloskop HM212; HAMEG GmbH, (ID = 295140) Equipment
Oszilloskop HM212; HAMEG GmbH, (ID = 653787) Equipment Oszilloskop HM212; HAMEG GmbH, (ID = 653788) Equipment
Oszilloskop HM212; HAMEG GmbH, (ID = 653789) Equipment
Use red slider bar for more.
Oszilloskop HM212; HAMEG GmbH, (ID = 178272) Equipment
HAMEG GmbH,: Oszilloskop HM212 [Equipment] ID = 178272 487x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oszilloskop HM212, HAMEG GmbH, Frankfurt:

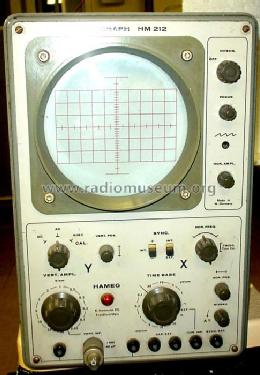

Frontansicht

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1966 ? Category: Service- or Lab Equipment
Valves / Tubes 13: EF184 ECC85 ECC85 ECL82 EZ81 ECC88 ECC88 ECC88 ECC88 ECC88 EY86 ECC82 D13-42GH
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oszilloskop HM212 - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 210 x 320 x 450 mm / 8.3 x 12.6 x 17.7 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 880.00 DM
Mentioned in Funkschau (1966 Heft 22 Seite 1791)

Model page created by Hartmut Daniels † 22.11.16. See "Data change" for further contributors.



All listed radios etc. from HAMEG GmbH, Frankfurt
Here you find 113 models, 106 with images and 93 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
HAMEG GmbH,: Oszilloskop HM212
Threads: 1 | Posts: 1
Hits: 1995     Replies: 0
hameg: HM212; Oszilloskop Schaltplan
Wolfgang Siegmund
29.May.12
  1

Hallo,

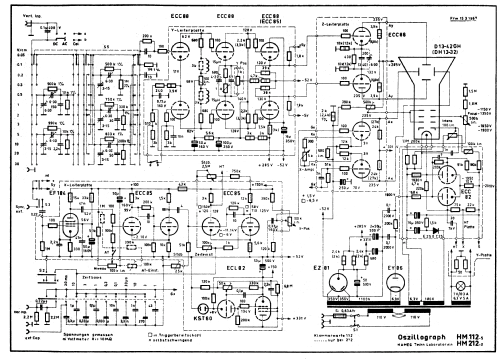

auf dem Schaltplan zum HM112 sind die Unterschiede zum HM212

eingetragen.

Beste Grüße,

Wolfgang Siegmund


HAMEG GmbH,: Oszilloskop HM212
End of forum contributions about this model
