Oscilloscope HM307-3
HAMEG GmbH, Frankfurt
- Country
- Germany
- Manufacturer / Brand
- HAMEG GmbH, Frankfurt
- Year
- 1979 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 132610

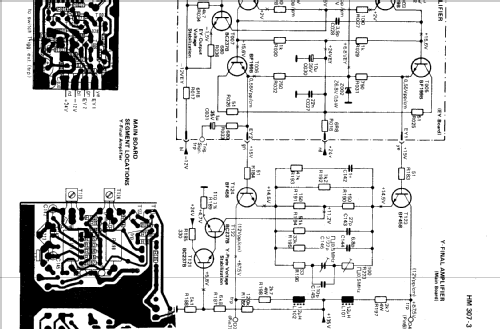

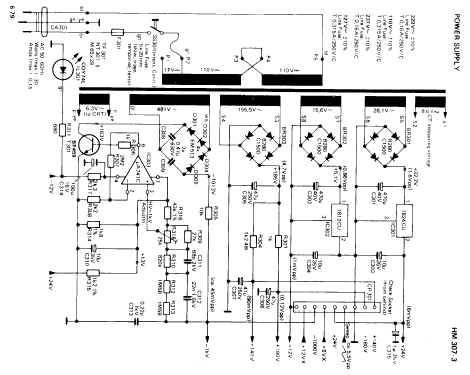

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 3RP1A
- Number of Transistors
- 27
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 237 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oscilloscope HM307-3 - HAMEG GmbH, Frankfurt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 212 x 114 x 270 mm / 8.3 x 4.5 x 10.6 inch
- Notes
- Oszilloskop HAMEG Type HM307-3 mit folgenden 0-10 Mhz, LPS Triggerung, eingebauter Component Tester. Eingebauter Rechteckgenerator 1kHz für Tastkopfabgleich.
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Author
- Model page created by Henning Oelkers. See "Data change" for further contributors.
