Universal-Oszillograph HM107 9 Röhren

Universal-Oszillograph HM107; HAMEG GmbH, (ID = 195619) Equipment

Universal-Oszillograph HM107; HAMEG GmbH, (ID = 195625) Equipment
Universal-Oszillograph HM107; HAMEG GmbH, (ID = 1011702) Equipment Universal-Oszillograph HM107; HAMEG GmbH, (ID = 1002236) Equipment
Universal-Oszillograph HM107; HAMEG GmbH, (ID = 1002237) Equipment Universal-Oszillograph HM107; HAMEG GmbH, (ID = 1079246) Equipment
Use red slider bar for more.
Universal-Oszillograph HM107; HAMEG GmbH, (ID = 1011702) Equipment

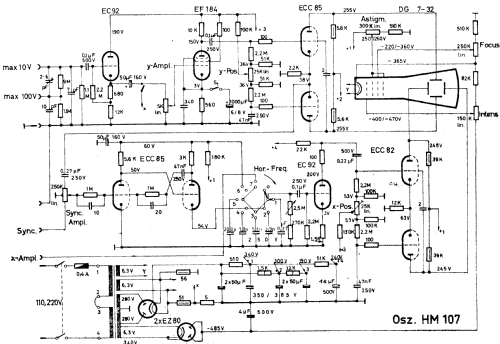

HAMEG GmbH,: Universal-Oszillograph HM107 [Equipment] ID = 1011702 642x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal-Oszillograph HM107 9 Röhren, HAMEG GmbH, Frankfurt:
Hor. Freq.-Knopf nicht original.

Country:  Germany
Manufacturer / Brand:  HAMEG GmbH, Frankfurt
Year: 1961 ? Category: Service- or Lab Equipment
Valves / Tubes 9: EC92 EC92 EF184 ECC85 ECC85 EZ80 EZ80 ECC82 DG7-32
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal-Oszillograph HM107 [9 Röhren] - HAMEG GmbH, Frankfurt
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 156 x 210 x 230 mm / 6.1 x 8.3 x 9.1 inch
Notes Oszillograph für Wechselspannungen, 3Hz-4MHz, 120mVss/cm (+2dB-6dB), durch Umschaltung 20mV/cm, 3Hz-1,2MHz (-6dB). Zwei Eingänge für 10 und 100Vss. X-Verstärker 500mVss/cm, 2Hz-1,2MHz (-6dB). Kippteil 20Hz-150kHz in 5 Stufen, Feinregulierung 1:8 je Stufe. Synchronisation ext. und int. regelbar. Preis 1962.
Passender Teilerkopf HZ10 (10:1) 25,-DM, Demodulatorkopf HZ11 25,-DM. Bausatz HM107, kompl. montiert, ohne Verdrahtung und Röhren mit Baubeschreibung 228 DM.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 398.00 DM
Collectors' prices
Mentioned in RIM Bastelbuch 1962, S.112/113
Literature/Schematics (1) Arlt radio-elektronik 1963, S.385/386
