Comet Pro Var. 2 (according to Moore)

Comet Pro ; Hammarlund Mfg. Co. (ID = 695694) Radio Comet Pro ; Hammarlund Mfg. Co. (ID = 695689) Radio
Comet Pro ; Hammarlund Mfg. Co. (ID = 695690) Radio Comet Pro ; Hammarlund Mfg. Co. (ID = 695692) Radio
Comet Pro ; Hammarlund Mfg. Co. (ID = 695691) Radio
Use red slider bar for more.
Comet Pro ; Hammarlund Mfg. Co. (ID = 695694) Radio
Hammarlund Mfg. Co.: Comet Pro [Radio] ID = 695694 753x357
Select picture or schematic to display from thumbnails on the right and click for download.
For model Comet Pro Var. 2 (according to Moore), Hammarlund Mfg. Co. Inc.; New York, NY:

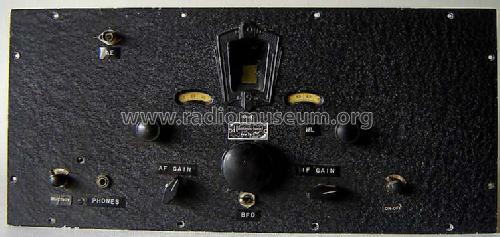

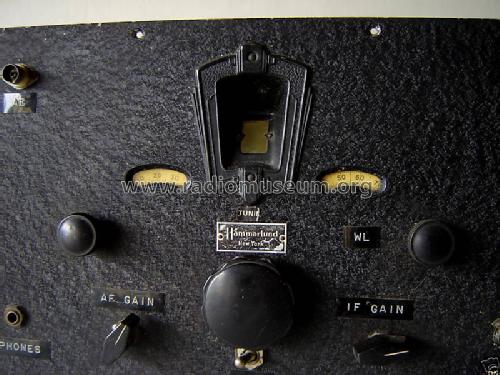

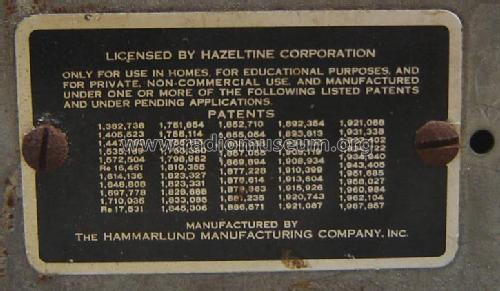

7 pictures from an old (unknown) eBay auction - version not known. We hope that somebody will find out the version by knowing them and comparing those 7 pictures. We will then move to the right version.

Country:  United States of America (USA)
Manufacturer / Brand:  Hammarlund Mfg. Co. Inc.; New York, NY
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 57 58 58 58 58 57 47 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Short Wave (SW only)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Comet Pro [Var. 2 ] - Hammarlund Mfg. Co. Inc.; New
Material Metal case
Shape Tablemodel, low profile (big size).
Notes

The Hammarlund Comet Pro (Later model, Variation 2 according to Communications Receivers by Moore) covers 1.2 to 20 MHz in four bands in AM and CW (BFO).

In contrast to Var.1 new tube lineup, power output stage integrated, shield cans over plug in coils.

Comes in wooden or metal cabinet.

Price in first year of sale 162.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Communications Receivers (4th edition page 59)
