HQ-ONE FORTY FIVE-X HQ-145X
Hammarlund Mfg. Co. Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hammarlund Mfg. Co. Inc.; New York, NY
- Year
- 1959–1963
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 78107

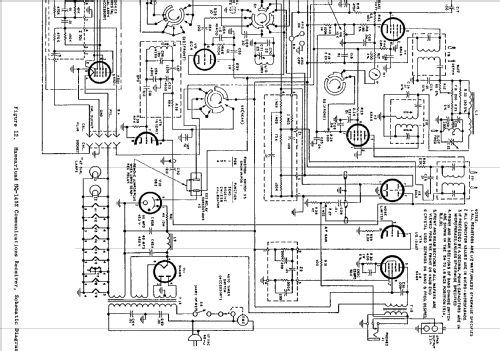

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet, double/triple conversion; ZF/IF 3035/455 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: HQ-ONE FORTY FIVE-X HQ-145X - Hammarlund Mfg. Co. Inc.; New
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 482 x 266 x 330 mm / 19 x 10.5 x 13 inch
- Notes
- coverage 540 - 1600, 1600-4000, 4000-10000 kHz (single conversion); 10000 - 30000 (double conversion); AM, SSB(BFO); 5 bandwidths, notch filter; optional XC 100 crystal calibrator; optional S-200 speaker; fixed crystal frequency position
- Source of data
- Shortwave Receivers - Past & Present (3rd ed.)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
