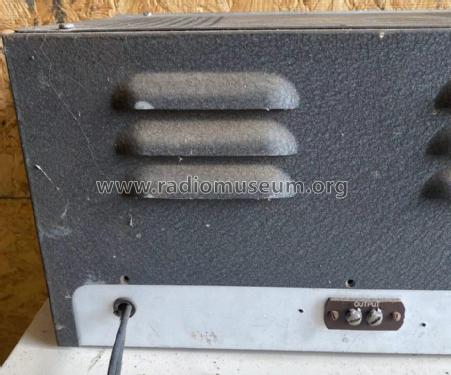

Modulator Four-11
Hammarlund Mfg. Co. Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hammarlund Mfg. Co. Inc.; New York, NY
- Year
- 1947 ?
- Category
- Amateur Equipment (Other, but not Key)
- Radiomuseum.org ID
- 360719
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 105; 115; 125 Volt
- Loudspeaker
- - - No sound reproduction output.
- Power out
- 11 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Modulator Four-11 - Hammarlund Mfg. Co. Inc.; New
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.25 x 8.25 x 9.5 inch / 387 x 210 x 241 mm
- Notes
-
Modulator for the Hammarlund HAM Transmitter Four-20.
- Net weight (2.2 lb = 1 kg)
- 41 lb (41 lb 0 oz) / 18.614 kg
- Mentioned in
- - - Manufacturers Literature (Instruction Manual Hammarlund Four-20 Transmitter Sec. 1 -- Four-11 Modulator Sec. 2, Form 1.2M-4-47)
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
