RBG-2 CHC-46140
Use red slider bar for more.

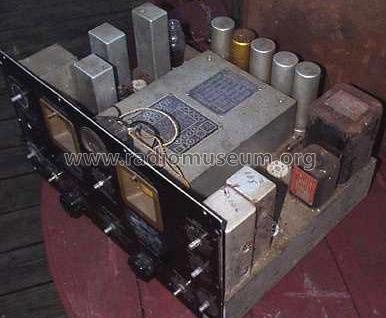

Hammarlund Mfg. Co.: RBG-2 CHC-46140 [Receiver-C] ID = 1017871 616x431
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1941–1943 | Category: Commercial Receiver (may include amateur bands) | ||||
| Valves / Tubes | 10: 6SK7 6SK7 6SK7 6SK7 6K8 6H6 6SJ7 6C5 6V6 5U4G VR105 |
|---|
| Main principle | Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s) |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110/120 50/60Hz Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: RBG-2 CHC-46140 - Hammarlund Mfg. Co. Inc.; New |
| Material | Metal case |
| Shape | Boatanchor (heavy military or commercial set). |
| Dimensions (WHD) | 18.9 x 12.2 x 14.7 inch / 480 x 310 x 373 mm |
| Notes | The RBG-2 receiver was produced under contract: NXss 20831 5 January 1943. Main Tuning is identical to the HQ-120X and HQ-129X. Band 1: 0.54 - 1.32 MHz; Band 2: 1.32 - 3.2 MHz; Band 3: 3.2 - 5.7 MHz; Band 4: 5.7 - 10.0 MHz; Band 5: 10.0 - 18.0 MHz; Band 6: 18.0 - 31.0 MHz. The Bandspread covers Maritime Frequencies instead of Amateur Bands in four bands as follows: Band 1: 4.0 - 4.6 MHz; Band 2: 8.0 - 9.6 MHz; Band 3: 12.0 - 13.6 MHz; Band 4: 15.0 - 18.0 MHz. This set has a seperate dedicated loudspeaker model CHC-49154. |
| Net weight (2.2 lb = 1 kg) | 28.5 kg / 62 lb 12.4 oz (62.775 lb) |
| Source of data | -- Original-techn. papers. |
| Mentioned in | Communications Receivers |
| Literature/Schematics (1) | NAVSHIPS 900,004-IB |
