• Country
• Germany

• Manufacturer / Brand
• Handic; Düsseldorf

• Year
• 1976

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 192655

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage and/or dry batteries / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

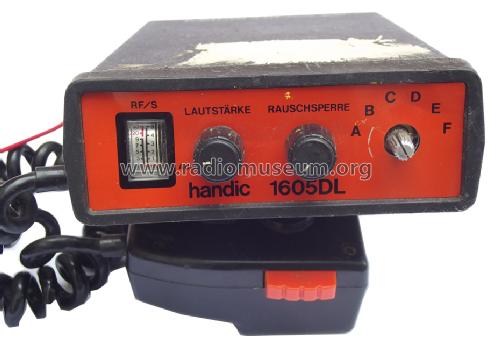

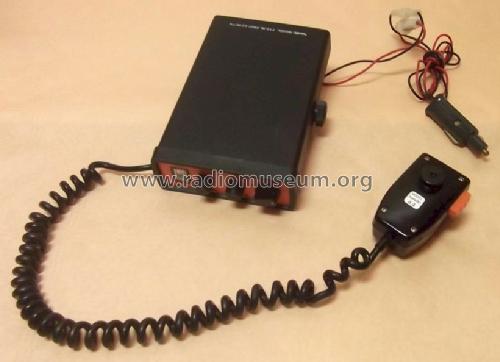

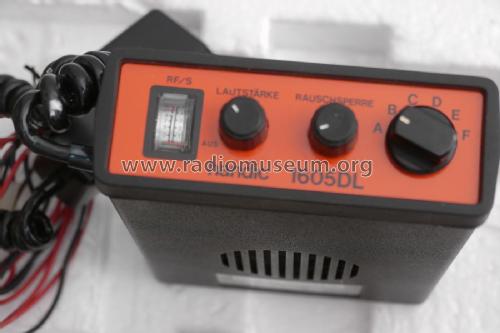

• Model: 1605DL - Handic; Düsseldorf

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 114 x 40 x 175 mm / 4.5 x 1.6 x 6.9 inch

• Notes
• Handic 1605DL;
  AM, sechs 27 MHz Kanäle, deutsch beschriftet, made in Japan. Anschlussmöglichkeit für Selektivruf-Zusatz. FTZ.-Nr. PR27-251M/76

• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
