• Country
• Germany

• Manufacturer / Brand
• Handic; Düsseldorf

• Year
• 1977

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 222404

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Material
• Metal case

• from Radiomuseum.org

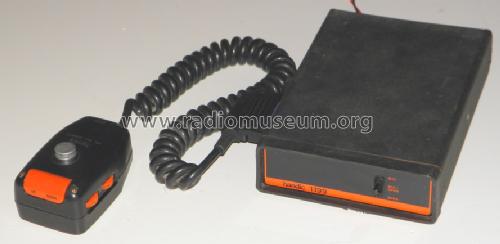

• Model: Sprechfunkgerät 1199 - Handic; Düsseldorf

• Dimensions (WHD)
• 145 x 50 x 205 mm / 5.7 x 2 x 8.1 inch

• Notes
• Fahrzeug-Sprechfunkgerät für das 27 MHz-CB-Band. 12 Kanäle (K4 bis K15), Frequenzaufbereitung durch Synthesizer. Amplitudenmodulation, Sendeleistung 0,5 W. Frequenzeinstellung durch Up-Down-Tasten am Mikrofon, Anschlußmöglichkeit für Selektivrufzusatz.
  FTZ-Nr. PR27-370/77

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
