Max Steckspule ; Hansen Max, Radio- (ID = 114352) Radio part
Hansen Max, Radio-: Max Steckspule [Radio part] ID = 114352 499x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Max Steckspule, Hansen Max, Radio-Rundfunk; Elberfeld:

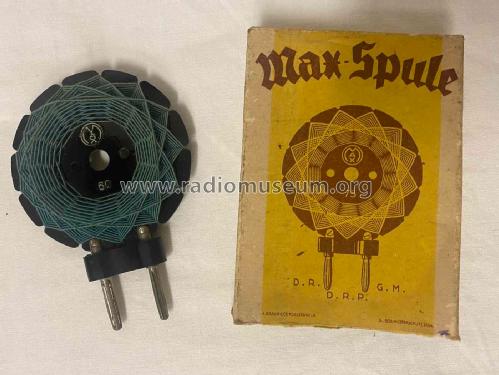

MAX - Spule

Country:  Germany
Manufacturer / Brand:  Hansen Max, Radio-Rundfunk; Elberfeld
Brand

Max (Spulen)
Year: 9999 Category: Radio part (not a module)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Max Steckspule - Hansen Max, Radio-Rundfunk;
Notes

Diverse Windungszahlen.

Diese Spulenserie gab es mit 5, 10, 15, 25, 35, 50, 60, 75, 100, 150, 200, 250, 300 und 400 Windungen.

Preise zwischen 1,05 RM (5 Windungen) und 3,60 RM (400 Windungen).
50 Windungen kosteten 1,35 RM und 75 Windungen 1,45 RM.

Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Bastelbriefe der Drahtlosen (1928 Heft 2)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
