For model S-100TrH ORR028, Hansen Electric Laboratory & Works, Ltd.; Tokyo:

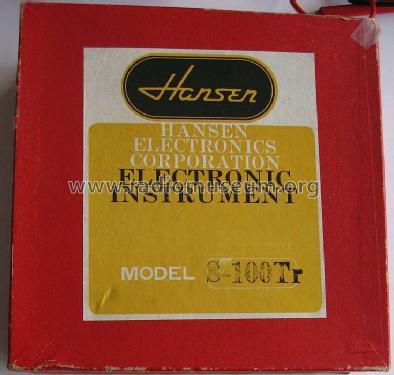

Frente y caja de protección.

Country:  Japan
Manufacturer / Brand:  Hansen Electric Laboratory & Works, Ltd.; Tokyo
Year: 1960 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 2x 1,5 & 22,5 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: S-100TrH ORR028 - Hansen Electric Laboratory &
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 61 x 145 x 172 mm / 2.4 x 5.7 x 6.8 inch
Notes DC Milli volts 0-120-600 mV
DC Volts 0-3-12-30-120-600 V
AC Volts 0-6-30-120-600 V
DC Micro amperes 0-12-600 µA
DC Milliamperes 0-12-300 mA
DC Amperes 0-12 A
Decibels -20 to +58 dB
Ohms 0-10 K - 1000 K Ohms
100-10 K Ohms at center scale
Megohms 0-600 Meg Ohms
Microfarads 0-0,04 - 0,2 µF (0-40, 0-200 000 pF)
As a Transistor tester

Model page created by Verhoeven Ludo. See "Data change" for further contributors.
