Harlie 6 Transistor TR661
Harlie Transistor Products / Trans-Aire; Jamaica (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harlie Transistor Products / Trans-Aire; Jamaica (NY)
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 260499

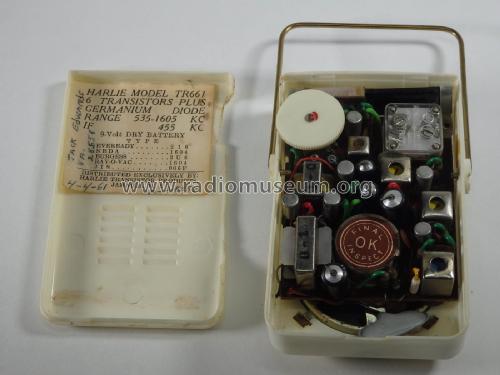

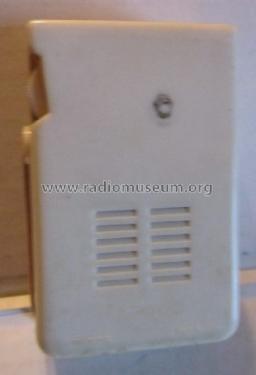

Ebay auction by user santafe199 271649100371
Ebay auction by user santafe199 271649100371
Ebay auction by user santafe199 271649100371
Ebay auction by user santafe199 271649100371

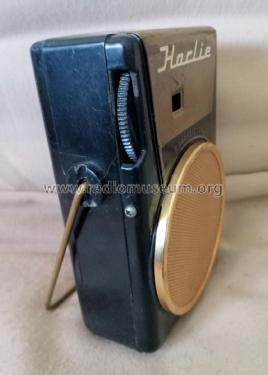

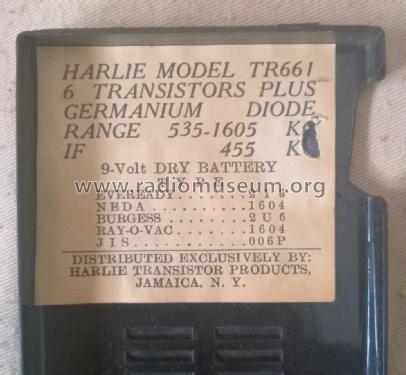

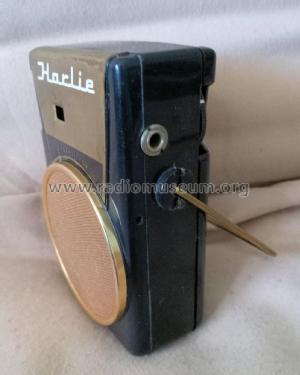

Courtesy of ChildhoodRadio.com
- Number of Transistors
- 6
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Harlie 6 Transistor TR661 - Harlie Transistor Products /
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 2.5 x 4 x 1.25 inch / 64 x 102 x 32 mm
- Notes
-
Frequency tuning range: 535-1605kHz.
Civil Defense marks on station dial.
See similar Hong Kong model Inscol TR-661.
Made in Japan
- Mentioned in
- Collector's Guide To TrR1 Bunis trans.94 (1996, page 116)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
