• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 129613

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 12AX7 12AX7 12AX7 12AX7 12AU7 7355 7355 7355 7355

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

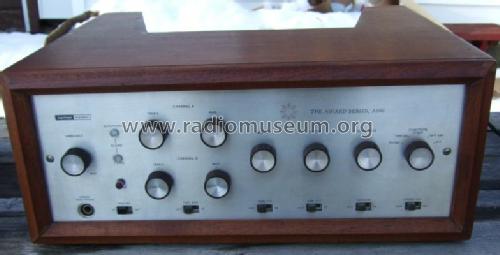

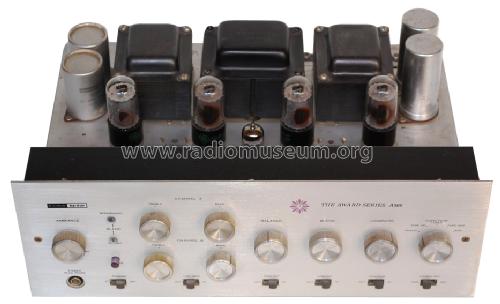

• Model: Award Series A500 - Harman Kardon; New York

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 145 x 320 mm / 15.7 x 5.7 x 12.6 inch

• Notes

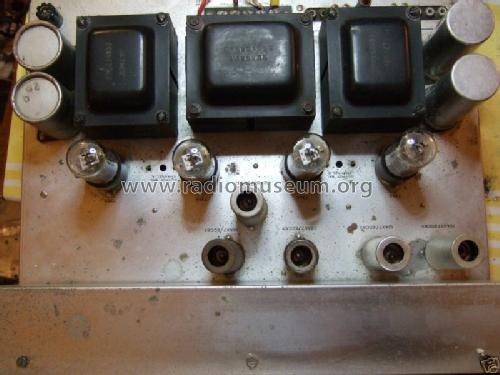

• Der Stereo-Verstärker mit der Bezeichnung "The Award Series A500" von Harman-Kardon hat mit seinen vier Endröhren (4x 7355) eine Ausgangsleistung von 2x 25 Watt. 6 schaltbare Signal-Eingange (Chinch-Buchsen). Lautsprecher-Anschluss (4, 8, 16 Ohm) erfolgt an Schraub-Klemmen. Kopfhörer-Anschluss (6,3 mm Klinkenbuchse) befindet sich an der Frontseite.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
