• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230466

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6C9_Twin-Tetrode 6EJ7 6EJ7 6M11 12AT7 12AX7 12AX7 12AX7 12AU7 7408 7408 7408 7408

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 24 W (30 W max.)

• Material
• Metal case

• from Radiomuseum.org

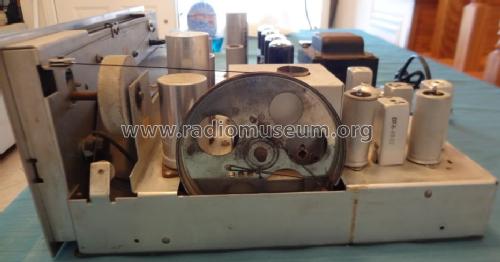

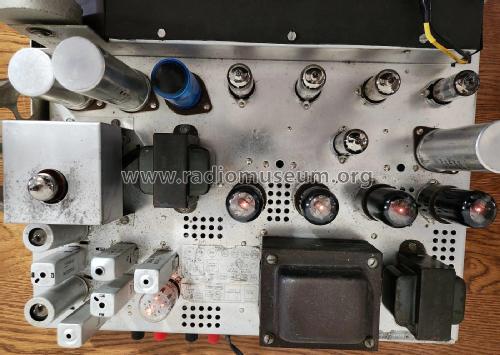

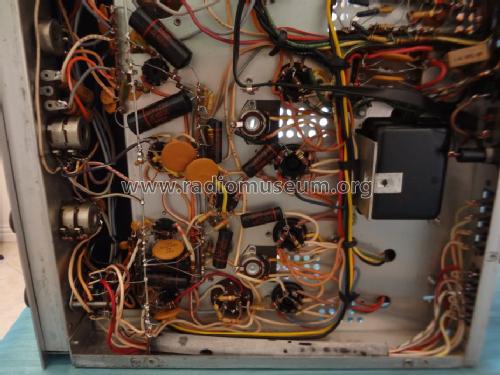

• Model: Award Series FA3000X - Harman Kardon; New York

• Shape
• Chassis only or for «building in»

• Notes

• FM stereo receiver; phono equalization switchable RIAA / NARTB.

  See also kit FA30XK and XAM version Mark VI.

• Source of data
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
