Citation 1 (I)

• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 138789

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes

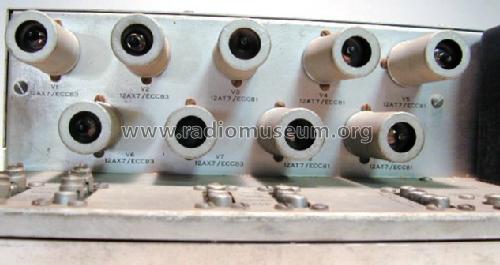

• 12AX7 12AX7 12AX7 12AX7 12AT7 12AT7 12AT7 12AT7 12AT7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Citation 1 - Harman Kardon; New York

• Shape
• Chassis only or for «building in»

• Notes
• Stereo Control Center (PreAmp) with several phono equalization settings; pairs with power amp Citation 2.

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
