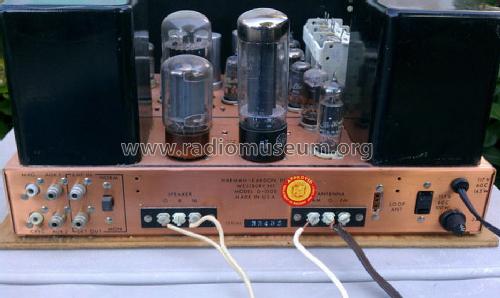

Festival D-1000; Harman Kardon; New (ID = 1187623) Radio
Use red slider bar for more.
Festival D-1000; Harman Kardon; New (ID = 273256) Radio
Harman Kardon; New: Festival D-1000 [Radio] ID = 273256 640x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Festival D-1000, Harman Kardon; New York

Country:  United States of America (USA)
Manufacturer / Brand:  Harman Kardon; New York
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: 12AT7 6U8 6BE6 12AU7 6BA6 6AU6 12AT7 6AU6 6AL5 12AU7 12AU7 5881 5881 5U4GA 6X4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Festival D-1000 - Harman Kardon; New York
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 350 x 170 x 280 mm / 13.8 x 6.7 x 11 inch
Notes The Harman Kardon model Festival D-1000, a FM-AM tuner and top-quality 30 watt amplifier, is the first Hi-Fi receiver with a combined technique of the Williamson amplifier plus an Ultra Linear output stage. As far as we know the Williamson amplifier was not patented and could be used freely. Gnereal Electric produced a 30 watt amp like this but with the original KT66 tubes. Reception of the Festival D-1000 is FM 88 - 108 MHz and AM broadcast 550 - 1650 kHz.

Sintoamplificatore. Sintonizzatore FM-AM 88-108 MHz, 550-1650 KHZ,controllo automatico frequenza AFC. Amplificatore di potenza 30 watt. Ingressi N. 2: fono con compensazione riaa, lp, eur,; aux1.
Mentioned in - - Data from my own collection

Model page created by Giuseppe Antonio Tusini. See "Data change" for further contributors.
