• Country
• United States of America (USA)

• Manufacturer / Brand
• Harman Kardon; New York

• Year
• 1997

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 163823

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• CD-Player, -Writer, MD, MOD (audio)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 230 / 12 Volt

• Loudspeaker

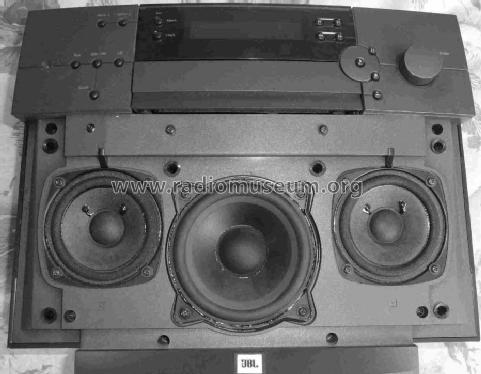

• 3 Loudspeakers / Ø 12 cm = 4.7 inch

• Power out
• 40 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: JBL-Harmony 230/RDS - Harman Kardon; New York

• Shape

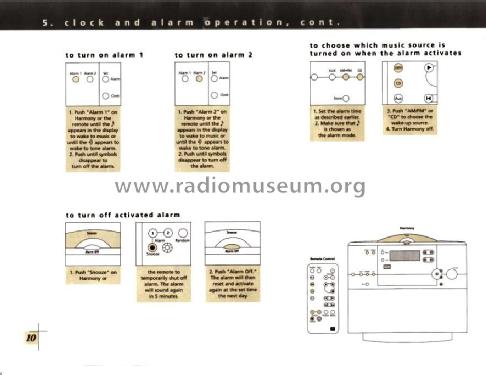

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 314 x 260 x 241 mm / 12.4 x 10.2 x 9.5 inch

• Notes
• Stereo Radio/CD/Aux- Eingang System mit 2 fach einstellbaren Timer incl. Fernbedienung

• Net weight (2.2 lb = 1 kg)
• 6.6 kg / 14 lb 8.6 oz (14.537 lb)

• Price in first year of sale
• 600.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Harry Gehrmann. See "Data change" for further contributors.
