For model JBL On Stage Micro II, Harman Kardon; New York:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  United States of America (USA)
Manufacturer / Brand:  Harman Kardon; New York
Year: 2009 ? Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Batteries / addl. power jack / AAA: 4 x 1.5 / DC 6 Volt
Loudspeaker 2 Loudspeakers / Ø 2.5 cm = 1 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: JBL On Stage Micro II - Harman Kardon; New York
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 150 x 38 x 150 mm / 5.9 x 1.5 x 5.9 inch
Notes

Portable docking station with active speaker for iPhone and iPod (certain models), can be used as a speaker for other audio sources as well.

Frequency response: 70 - 20000 Hz
Transducers: 2 x JBL Odyssey 25 mm transducers
Audio output power: 2 x 2 W

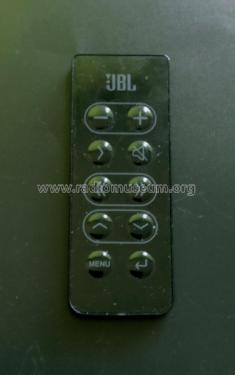

Remote control.

Made in China.

Net weight (2.2 lb = 1 kg) 0.5 kg / 1 lb 1.6 oz (1.101 lb)
Mentioned in -- Original-techn. papers.

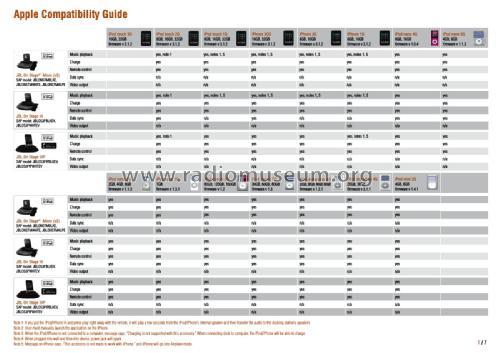

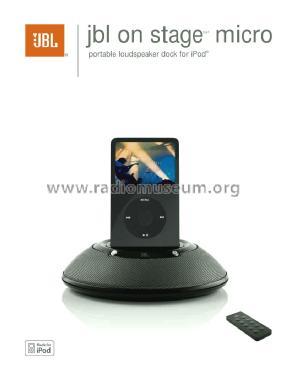

Literature/Schematics (1) - - Manufacturers Literature (Manual dated 2009)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
