Harman Kardon; New: JBL On Stage Micro III [Speaker-P] ID = 2302293 933x933

Select picture or schematic to display from thumbnails on the right and click for download.

For model JBL On Stage Micro III, Harman Kardon; New York:
Quelle: brand photo.Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:

United States of America (USA)

Manufacturer / Brand:

Harman Kardon; New York

Year: 2010

Category: Loudspeaker, headphone or earphone

Semiconductors (the count is only for transistors)

Semiconductors present. T2155DSE

Main principle	Audio-Amplification
Wave bands	- without
Details	Loudspeaker + integr.Amplifier
Power type and voltage	Batteries / addl. power jack / 4 x AAA 1.5 or 1,2 / 6 Volt
Loudspeaker	2 Loudspeakers / Ø 2.5 cm = 1 inch
Power out	4 W (unknown quality)
from Radiomuseum.org	Model: JBL On Stage Micro III - Harman Kardon; New York
Material	Modern plastics (no Bakelite or Catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	168 x 168 x 54 mm / 6.6 x 6.6 x 2.1 inch
Net weight (2.2 lb = 1 kg)	0.360 kg / 0 lb 12.7 oz (0.793 lb)

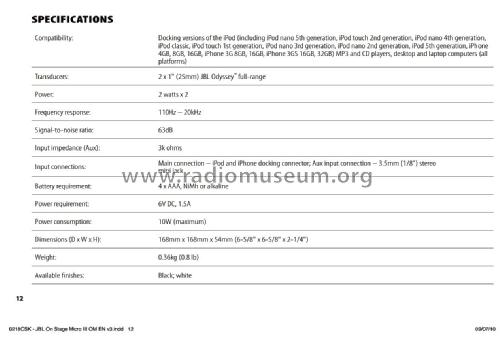

Mentioned in	-- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
