The Theme II T-1040
Harman Kardon; New York
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harman Kardon; New York
- Year
- 1958 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 161699
Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: The Theme II T-1040 - Harman Kardon; New York
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 12.5 x 3.25 x 8.75 inch / 318 x 83 x 222 mm
- Notes
-
Harman-Kardon model T-1040 is a AM/FM Tuner, mono.
Armstrong circuit with dual double tuned Limiters and Foster-Seeley Discriminator. Variable Automatic Frequency Control, Low Noise Front End consisting of Triode Grounded Grid Amplifier and Triode Mixer. Variable Automatic Noise Gate.
Superheterodyne with A.V.C. and Ferrite Antenna - 10KC Whistle Filter - 3 stages A.V.C.

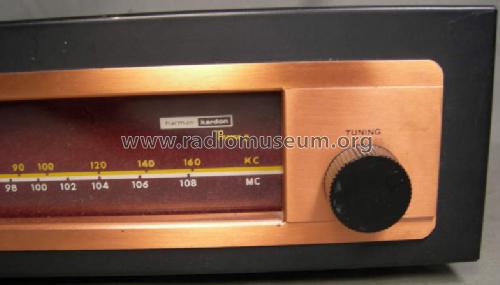

Escutcheon: brushed copper. Cage: matt black. Edge lighted dial glass: yellow and white.
Shipping weight 14 lbs.
11 Tubes, Selenium Power Rectifier.
- Price in first year of sale
- 140.00 $
- Source of data
- -- Original prospect or advert
- Mentioned in
- Harman Kardon - The best seat in the Concert Hall - 1957 - page 10
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 389 Folder 10 dated 2-58)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
