• Year
  • 1981 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 207084

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Batteries / addl. power jack / 8 x 1.5;10 x 1.2 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: H-410T - Harris Overseas Ltd.; London,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 75 x 223 x 55 mm / 3 x 8.8 x 2.2 inch
  • Notes

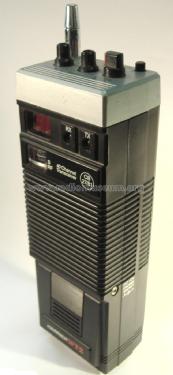

  • CB 27/81 UK standard Handheld "Walkie-Talkie"
    40 channels 27MHz 4W FM
    Low/High power switch underneath batteries.
    2 x Dummy cells required for AA size Alkaline.
    External 2.5mm +12V jack only for charging AA size NiCd x 10
    External 3.5mm aerial jack as well as as 1.3m 10 section telescopic whip
    LED 2 digit channel display with on/off
    Emergency call, Squelch and volume controls
    RX, TX LEDs and miniature RX signal / TX power moving coil meter

    Also sold in Dixons UK (DRG) as identical "Harrier WT2", differs only in screen printing of model name. "Made in Hong Kong"
    Grey or black top panel, Leatherette cover with carry straps that fail. Height excludes knobs and aerial stub.
  • Net weight (2.2 lb = 1 kg)
  • 0.750 kg / 1 lb 10.4 oz (1.652 lb)
  • Author
  • Model page created by Michael Watterson. See "Data change" for further contributors.
