Harvard H-2 Walkie-Talkie Zero Two Zero (020)

Harris Overseas Ltd.; London, later Harvard

  • Year
  • 1981 ??
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 319144

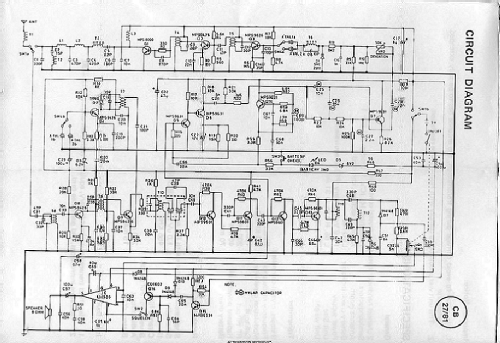

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 16
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz; 1 AF stage(s)
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Dry Batteries / PP3: 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

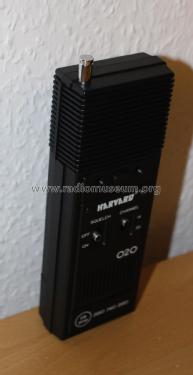

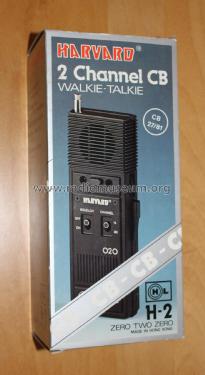

  • Model: Harvard H-2 Walkie-Talkie Zero Two Zero - Harris Overseas Ltd.; London,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 65 x 175 x 31 mm / 2.6 x 6.9 x 1.2 inch
  • Notes
  • A Citizen Band 2 channel handheld walkie-Talkie, UK channel 14 (27,73125 MHz) and channel 30 (27,89125 MHz).

    Specification
    Transmitter 3 stages, crystal controlled
    Frequency modulation : Direct
    Modulation capability : 2.5 kHz/Dev.
    Call tone : 1000 Hz
    RF output : 200 mW
    Radiated power ERP : 40 mW
    Receiver Single superheterodyne with RF amplifier.
    Sensitivity : 1.0 uV for 10 dB S+N/N
    Ceramic filter :
    Squelch control switch
    Audio output : 250 mW
    General
    Semiconductors : Transistors: 16, IC's: 1, Diodes: 8, LED: 1
    Antenna length : 75 cm 7 sections, chromed
    Battery check indicator : LED red
    Battery drain : 15 mA

    1 IC (LM386) NF Verstärker.

    2 Kanäle, UK Kanal 14 (27,73125 MHz) und Kanal 30 (27,89125 MHz)

    UK Zulassung CB 27/81

    Made in Hong Kong

  • Net weight (2.2 lb = 1 kg)
  • 0.250 kg / 0 lb 8.8 oz (0.551 lb)
  • Literature/Schematics (1)

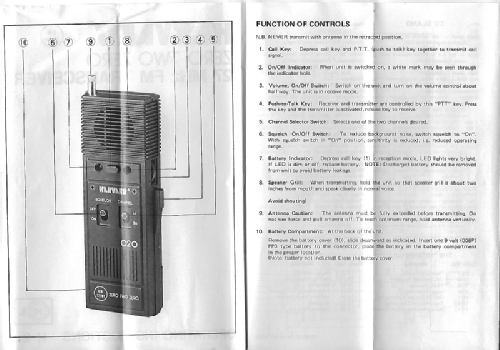

  • - - Manufacturers Literature (Operating Instructions)
  • Author
  • Model page created by Lothar Oelkrug. See "Data change" for further contributors.
