Hartman Model 10-B
Hartman Electrical Mfg. Co., The; Mansfield, Ohio
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hartman Electrical Mfg. Co., The; Mansfield, Ohio
- Year
- 1925
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 44152

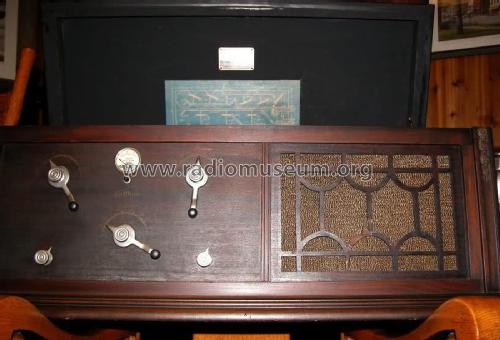

Picture courtesy of Antique Radio Forums.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration; 2 AF stage(s)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Horn
- Material
- Wooden case
- from Radiomuseum.org
- Model: Hartman Model 10-B - Hartman Electrical Mfg. Co.,
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Notes
-
Two dials (primary tuning control knobs)
The Hartman 10-B was the same as the Hartman 10-CS with a built-in horn speaker and a slightly cheaper four-tube, two-dial version of the Hartman 12-B.
- Price in first year of sale
- 135.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Literature/Schematics (1)
- September 1925, Electrical Record Supplement page 39
