• Year
  • 1925
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 44156

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries
  • Loudspeaker
  • Horn
  • Material
  • Wooden case
  • from Radiomuseum.org

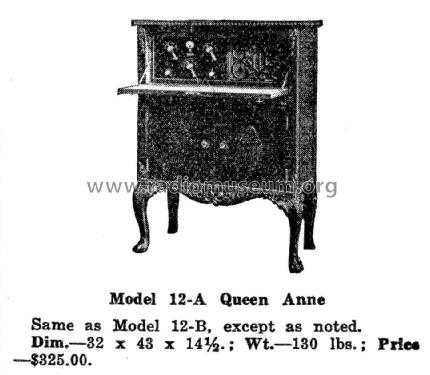

  • Model: Hartman Model 12-A [Queen Anne] - Hartman Electrical Mfg. Co.,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 32 x 43 x 14.5 inch / 813 x 1092 x 368 mm
  • Notes
  • Three dials (primary tuning control knobs)
  • Net weight (2.2 lb = 1 kg)
  • 130 lb (130 lb 0 oz) / 59.020 kg
  • Price in first year of sale
  • 325.00 $
  • External source of data
  • Ernst Erb
  • Mentioned in
  • September 1925, Electrical Record Supplement page 39
