RCL-Meßbrücke

RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803642) Equipment RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803635) Equipment
RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803636) Equipment RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803637) Equipment
RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803638) Equipment RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803639) Equipment

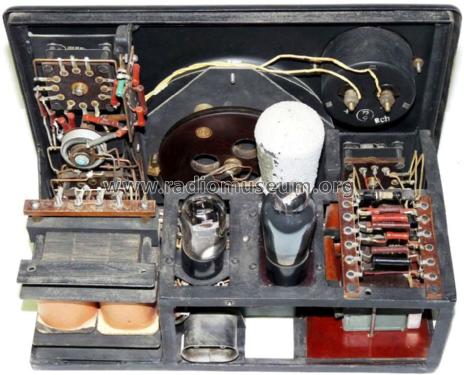

RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803640) Equipment RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803641) Equipment
Use red slider bar for more.
RCL-Meßbrücke ; Hauke, Rudolf; (ID = 803642) Equipment
Hauke, Rudolf;: RCL-Meßbrücke [Equipment] ID = 803642 933x719
Select picture or schematic to display from thumbnails on the right and click for download.
For model RCL-Meßbrücke, Hauke, Rudolf; Roitham

Country:  Austria
Manufacturer / Brand:  Hauke, Rudolf; Roitham
Year: 1948/1949 Category: Service- or Lab Equipment
Valves / Tubes 3: 6H6 unknown_Tube unknown_Tube
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: RCL-Meßbrücke - Hauke, Rudolf; Roitham
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 315 x 235 x 170 mm / 12.4 x 9.3 x 6.7 inch
Notes Messbereiche: Ohm x 10, kOhm x 1, MOhm x 0,1, pf x 100, pf x 1000, uF x 1. Gleich- und Wechselspannungsbereiche je 10/100/500 Volt. Anschlüsse für Messhörer, Spannungsmessung und Leitungsprüfung.
Net weight (2.2 lb = 1 kg) 7.9 kg / 17 lb 6.4 oz (17.401 lb)
Mentioned in Radiotechnik-Radioamateur (RT), Erb, Wien (47) (Werbung in Heft 12/Dez. 1948 S. 661)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
