• Country
• United States of America (USA)

• Manufacturer / Brand
• Heathkit (Brand), Heath Co.; Benton Harbor (MI)

• Year
• 1958 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 76387

• • alternative name: Heath Company

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

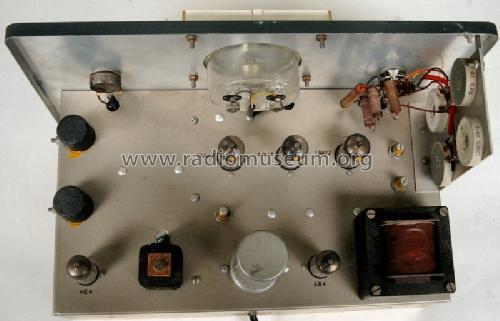

• 6C4 12AX7 12AT7 12AU7 6X4

• Power type and voltage
• Alternating Current supply (AC) / 115-125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

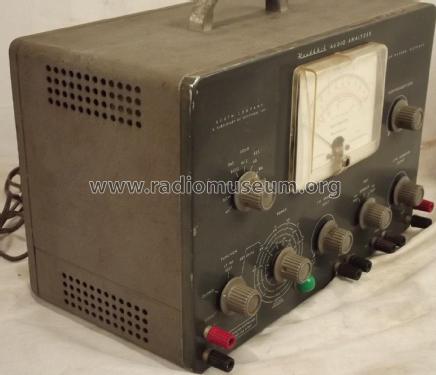

• Model: Audio Analyzer AA-1 - Heathkit Brand, Heath Co.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 330 x 215 x 177 mm / 13 x 8.5 x 7 inch

• Notes
• Etwas besonderes: ein Intermodulationsgrad Meßgerät mit AC Voltmeter und Wattmeter mit eingebauten Leistungswiderständen. AC VTVM: 10 cycles to 100 kc ± 1 db; Range: AC VTVM--0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300V RMS full scale; Wattmeter -15 mW, 1.5 mW, 15 mW, 150 mW, 1.5 W, 15 W, 150 W full scale; IM Analyzer: 1%, 3%, 10%, 30%, 100% full scale.

• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• Price in first year of sale
• 49.95 USD

• Literature/Schematics (1)
• -- Original prospect or advert (Heathkit Catalog 1958 page 14.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
